SKF FYTB 50 TF – 50 mm Oval Flange Bearing Unit

SKF FYTB 50 TF – 50 mm Oval Flange Bearing Unit

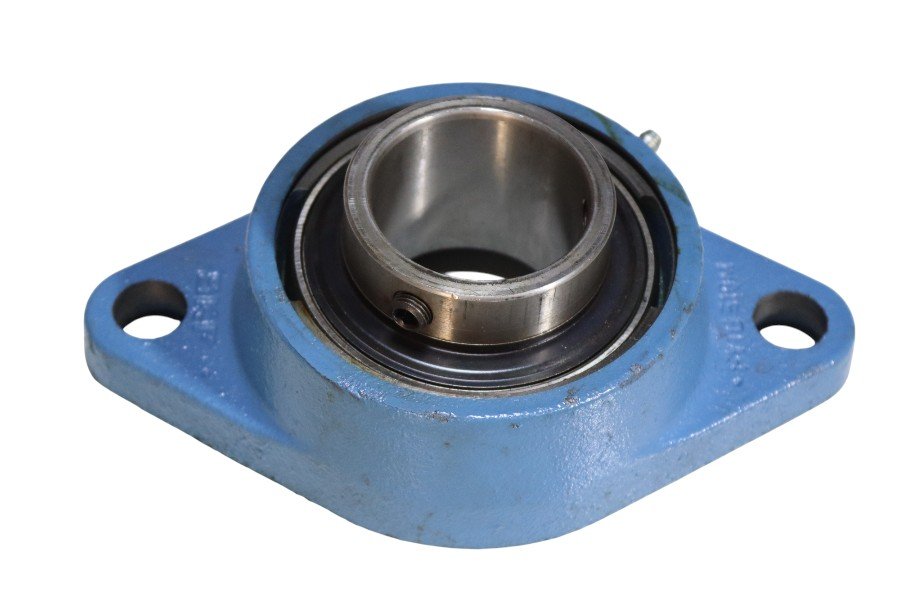

The SKF FYTB 50 TF is a robust oval flange ball bearing unit designed for secure and reliable shaft support. This complete assembly, featuring a cast iron housing and an inserted bearing with a 50 mm shaft diameter, is ideal for mounting on a machine wall or frame. It is built to accommodate moderate initial shaft misalignment and perform reliably under high levels of contamination, speed, and heavy loads, making it a versatile solution for a wide range of industrial applications.

—

Quick Navigation

• About This Bearing Unit
• Applications
• Why ROMA Industrial Company
• Technical Specifications
• Key Features & Benefits

—

About This Bearing Unit

This product is a mounted bearing unit, which integrates a deep groove ball bearing (YAR 210-2F) into a cast iron housing. The FYTB designation refers to a unit with an oval flange housing, which has two bolt holes for mounting. The bearing features an extended inner ring with two set screws, providing a simple and effective method for securing the bearing to a cylindrical shaft. The unit is designed to accommodate some initial shaft misalignment and is pre-lubricated and sealed to protect against contamination, ensuring long-term, maintenance-free operation.

—

Applications

This flange bearing unit is suitable for a wide range of industrial applications, including:

• Conveyor Systems
• Material Handling Equipment
• Agricultural Machinery
• Packaging Equipment
• General Industrial Machinery

—

Why ROMA Industrial Company

ROMA Industrial is your trusted partner for a full range of industrial supplies across categories like Motion Control & Mechatronics, Electrical & Automation, and Fluid Power & Control. We are committed to providing top-tier products and service to keep your operations running smoothly. We partner with world-class shipping providers like FedEx, DHL, and UPS to ensure fast and reliable delivery worldwide. We accept returns to fulfill your satisfaction and accept variable payments methods including PayPal, credit cards, and more. We are a supplier in Europe, USA, and Saudi Arabia.

—

Technical Specifications

• Manufacturer: SKF
• Part Number: FYTB 50 TF
• Shaft Diameter: 50 mm
• Overall Width: 60.6 mm
• Overall Height: 189 mm
• Center Distance between Bolt Holes: 157 mm
• Housing Material: Cast Iron
• Inserted Bearing: YAR 210-2F
• Basic Dynamic Load Rating: 35.1 kN
• Basic Static Load Rating: 23.2 kN
• Limiting Speed: 4,000 r/min
• Weight: N/A

—

Key Features & Benefits

• Easy Installation: The unit is pre-assembled and can be easily mounted to a flat surface with two bolts.
• Contamination Resistance: The sealed design protects the bearing from dust and moisture, extending its service life.
• High Load Capacity: Designed to handle both radial and limited axial loads for robust performance.
• Misalignment Compensation: The bearing’s spherical outer ring allows the unit to accommodate initial shaft misalignment.
