FAG UCFL205-J7 – 25 mm Oval Flange Bearing Unit

FAG UCFL205-J7 – 25 mm Oval Flange Bearing Unit

The FAG UCFL205-J7 is a high-quality oval flange ball bearing unit with a 25 mm shaft diameter. This complete assembly, which includes a bearing mounted within a cast iron housing, is designed for easy installation on a machine wall or frame. It is built to accommodate moderate initial shaft misalignment and perform reliably under high levels of contamination, speed, and heavy loads, making it a versatile solution for a wide range of industrial applications.

—

Quick Navigation

• About This Bearing Unit
• Applications
• Why ROMA Industrial Company
• Technical Specifications
• Key Features & Benefits

—

About This Bearing Unit

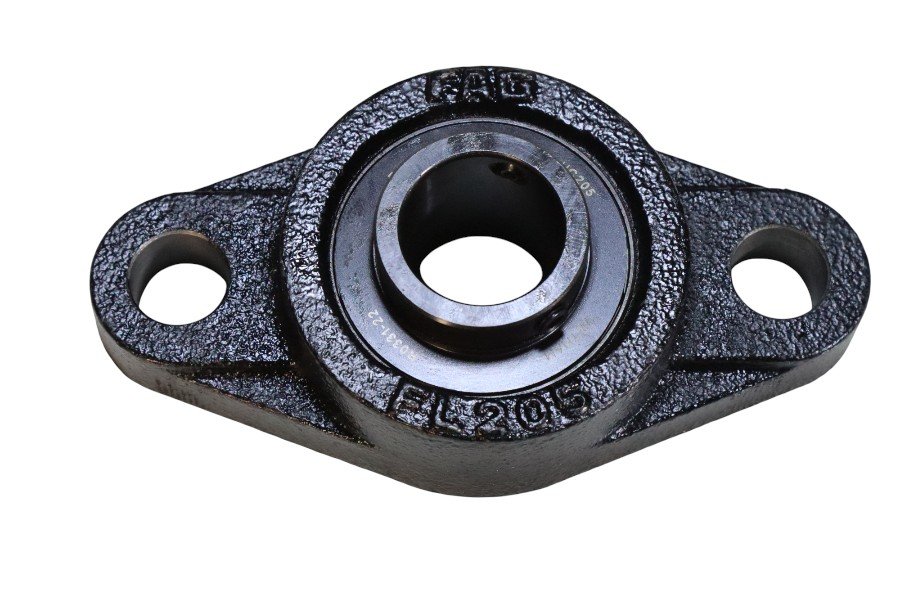

This product is a mounted bearing unit, which integrates a deep groove ball bearing (UC205) into a cast iron housing. The UCFL designation refers to a unit with an oval flange housing, which has two bolt holes for mounting. The bearing features an extended inner ring with two set screws, providing a simple yet effective method for securing the bearing to a cylindrical shaft. The J7 suffix indicates a specific type of housing that may have different dimensions or features compared to the standard UCFL205 unit. The unit is pre-lubricated and sealed to protect against contamination, ensuring long-term, maintenance-free operation.

—

Applications

This flange bearing unit is suitable for a wide range of industrial applications, including:

• Conveyor Systems
• Material Handling Equipment
• Agricultural Machinery
• Packaging Equipment
• General Industrial Machinery

—

Why ROMA Industrial Company

ROMA Industrial is your trusted partner for a full range of industrial supplies across categories like Motion Control & Mechatronics, Electrical & Automation, and Fluid Power & Control. We are committed to providing top-tier products and service to keep your operations running smoothly. We partner with world-class shipping providers like FedEx, DHL, and UPS to ensure fast and reliable delivery worldwide. We accept returns to fulfill your satisfaction and accept variable payments methods including PayPal, credit cards, and more. We are a supplier in Europe, USA, and Saudi Arabia.

—

Technical Specifications

• Manufacturer: FAG (part of the Schaeffler Group)
• Part Number: UCFL205-J7
• Shaft Diameter: 25 mm
• Overall Width: 34.1 mm
• Overall Height: 110 mm
• Center Distance between Bolt Holes: 83 mm
• Base to Shaft Center Height: 36.5 mm
• Housing Material: Cast iron
• Inserted Bearing: UC205
• Basic Dynamic Load Rating: 14.3 kN
• Basic Static Load Rating: 7.8 kN
• Limiting Speed: 6,700 r/min
• Weight: N/A

—

Key Features & Benefits

• Easy Installation: The unit is pre-assembled and can be easily mounted to a flat surface with two bolts.
• Secure Shaft Locking: The set-screw locking mechanism provides a firm and reliable grip on the shaft.
• High Load Capacity: Designed to handle both radial and limited axial loads for robust performance.
• Contamination Resistance: The sealed design protects the bearing from dust and moisture, extending its service life.
