Mut Meccanica Tovo AS 250/180/230/OO – Electrothermal Actuator

Mut Meccanica Tovo AS 250/180/230/OO – Electrothermal Actuator

The Mut Meccanica Tovo AS 250/180/230/OO is an advanced electrothermal actuator designed for the precise and silent control of valves. This device converts an electrical signal into linear motion by using a heating element to expand a waxy substance, which then provides the actuating force. It is a slow-acting, reliable method of valve control, making it a common component in HVAC systems and underfloor heating.

Quick Navigation

• Key Features
• Technical Data
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• Electrothermal Operation: Uses an internal heating element to provide a silent and reliable actuating force.
• Slow-Acting Control: The `180-second` stroke time is ideal for applications requiring gradual valve opening or closing.
• High Actuating Force: Provides a force of 250 N, suitable for a variety of valve types.
• ON-OFF Control: Designed for simple and reliable ON-OFF control of fluid flow.
• IP44 Protection: The IP44 rating protects against solid objects and water splashes.

Technical Data

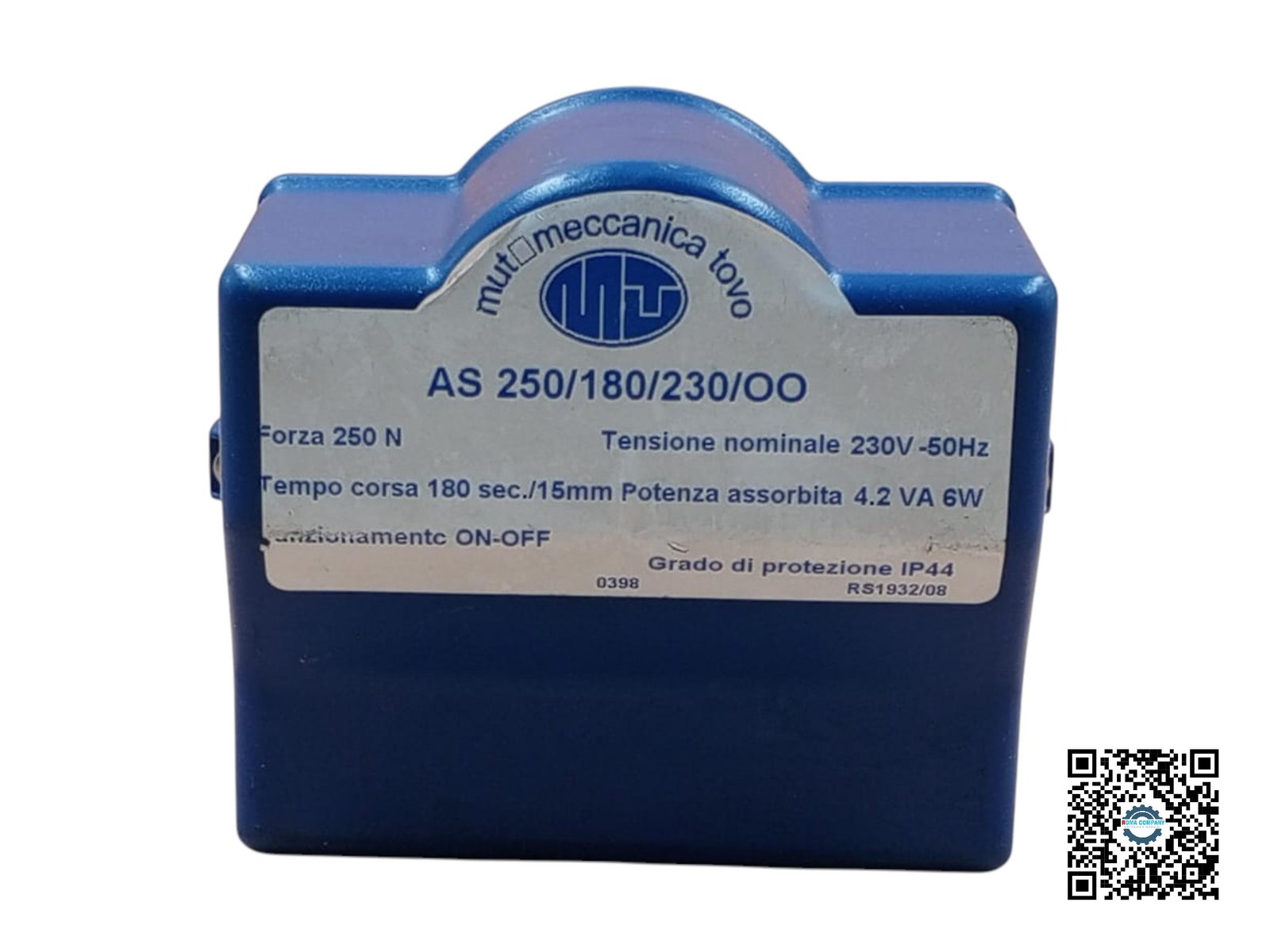

The Mut Meccanica Tovo AS 250/180/230/OO is an electrothermal actuator. It works by using an internal heating element to expand a waxy substance, which pushes a piston or rod to provide the actuating force. The nominal voltage is 230 V at 50 Hz, and the power consumption is 4.2 VA and 6 W. The actuating force is 250 N, with a stroke time of 180 seconds for a 15 mm travel. The mode of operation is ON-OFF.

Technical Specifications

• Manufacturer: Mut Meccanica Tovo S.p.A.
• Part Number: AS 250/180/230/OO
• Product Type: Electrothermal Actuator
• Nominal Voltage: 230 V AC
• Frequency: 50 Hz
• Power Consumption: 4.2 VA / 6 W
• Actuating Force: 250 N
• Stroke: 15 mm
• Stroke Time: 180 s
• Ingress Protection: IP44

Applications

This Mut actuator is a fundamental component in fluid control systems, including:

• HVAC Systems and Valve Control
• Underfloor Heating and Climate Control
• Process Control and Automation
• Hydraulic and Pneumatic Systems
