Metal Work Pneumatic 0227301200 – Solenoid Valve Manifold

Description

Metal Work Pneumatic 0227301200 – Solenoid Valve Manifold

The Metal Work Pneumatic 0227301200 is a high-quality valve manifold, a key component in pneumatic systems designed to centrally connect and control multiple solenoid valves. This manifold block simplifies the plumbing and wiring of a pneumatic control system by providing a common air supply and exhaust channels for the valves. The multi-pin electrical connector on top allows a single cable to control multiple valves, which greatly simplifies installation and troubleshooting.

Quick Navigation

• Key Features
• Valve Manifold Function
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• Centralized Control: Allows multiple solenoid valves to be mounted on a single block, providing a central point for control and air distribution.
• Simplified Plumbing: The common supply and exhaust channels eliminate the need for complex individual piping.
• Easy Wiring: The multi-pin electrical connector greatly simplifies wiring, reducing installation time and potential errors.
• Modular Design: The manifold is designed to be easily expanded with additional valve positions.
• Made in Italy: Manufactured to high standards for quality and performance.

Valve Manifold Function

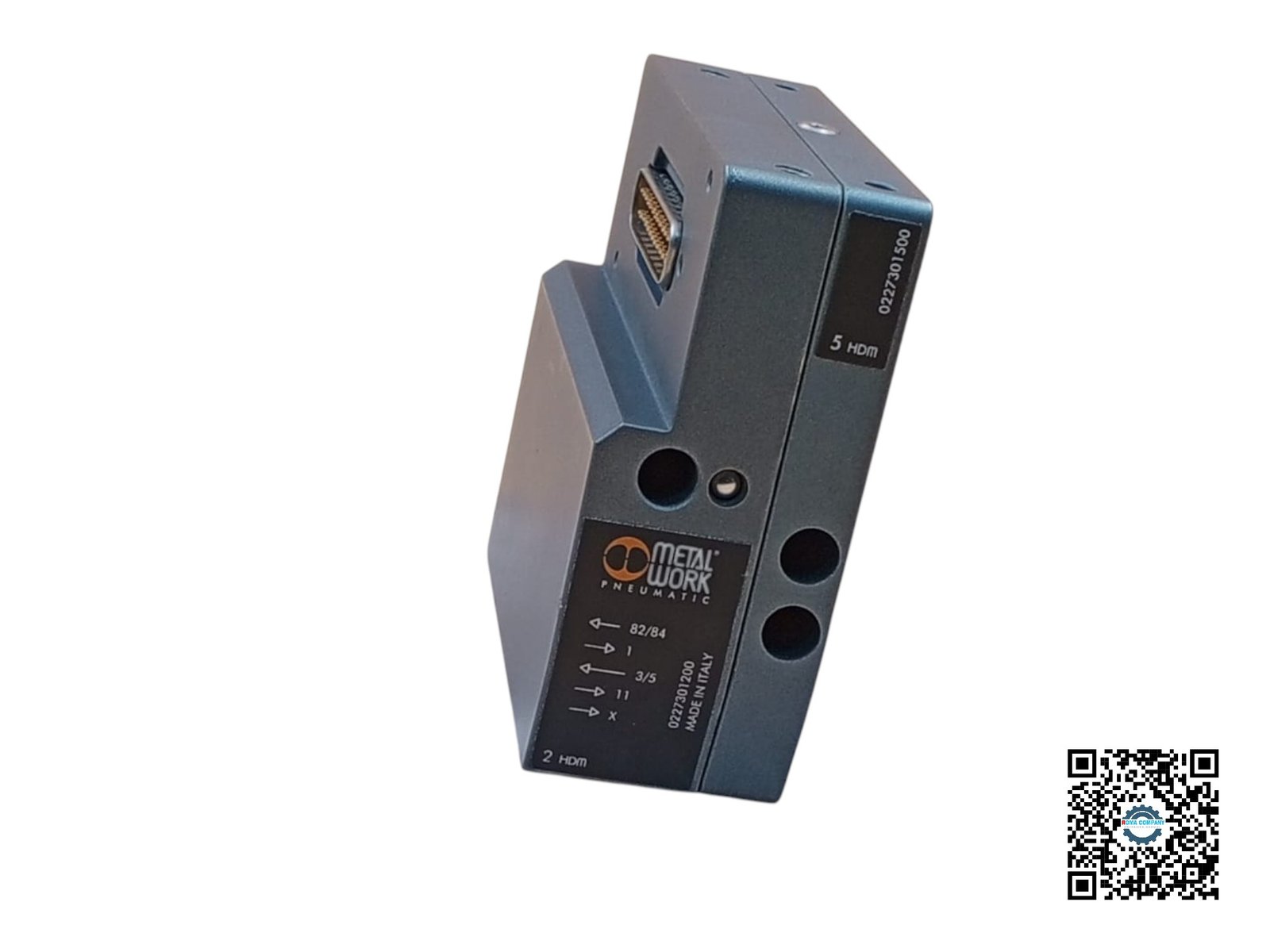

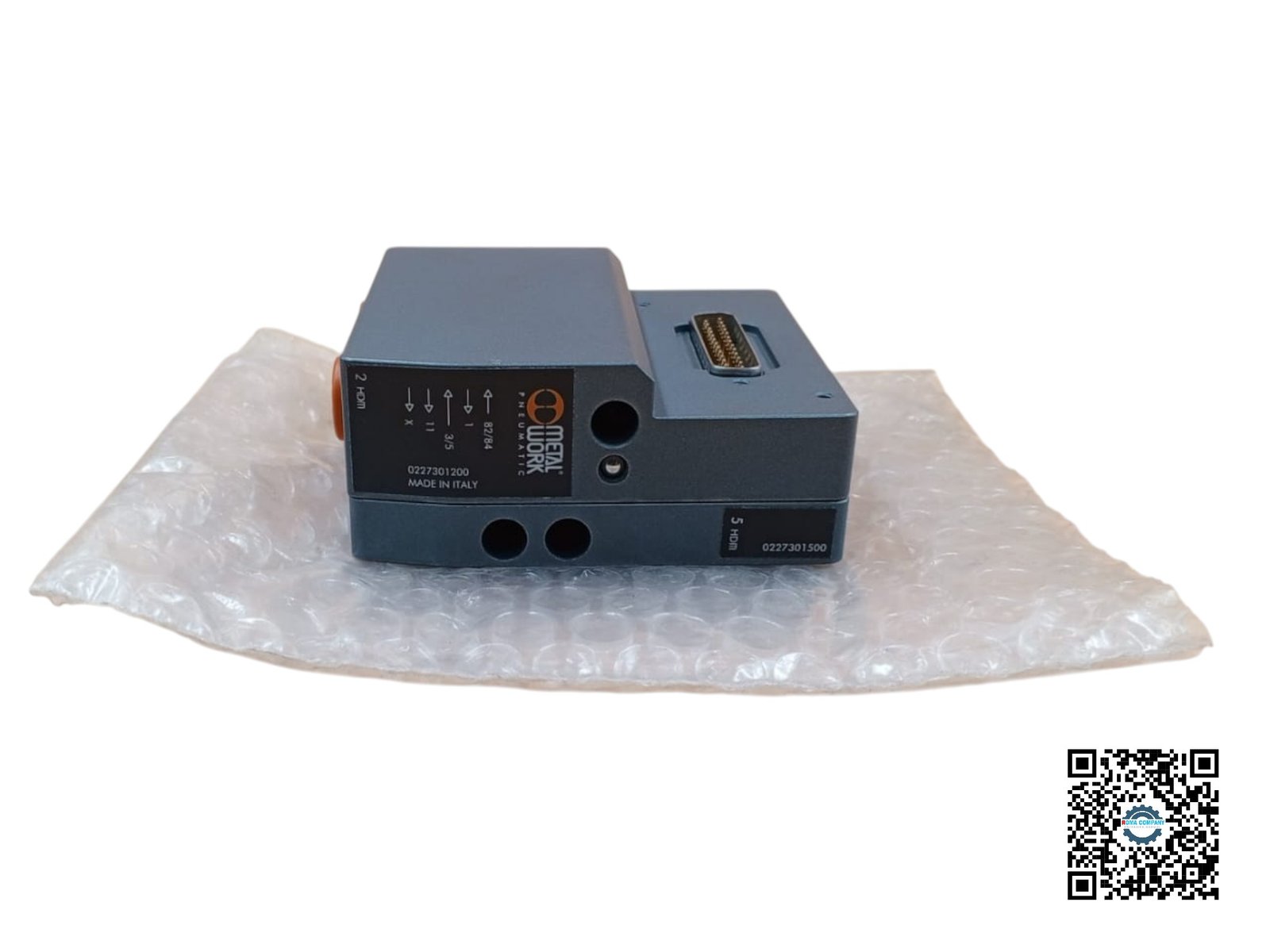

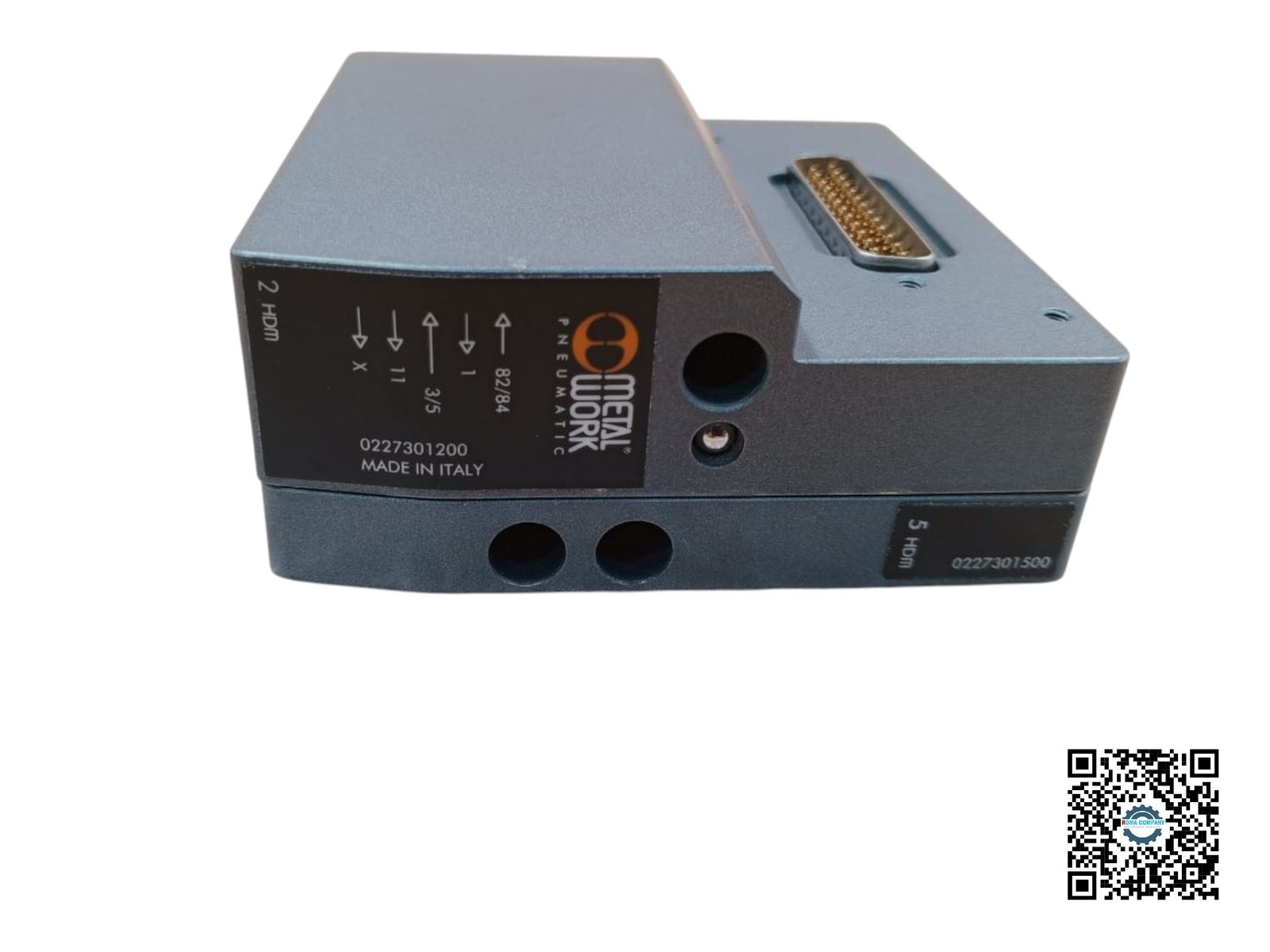

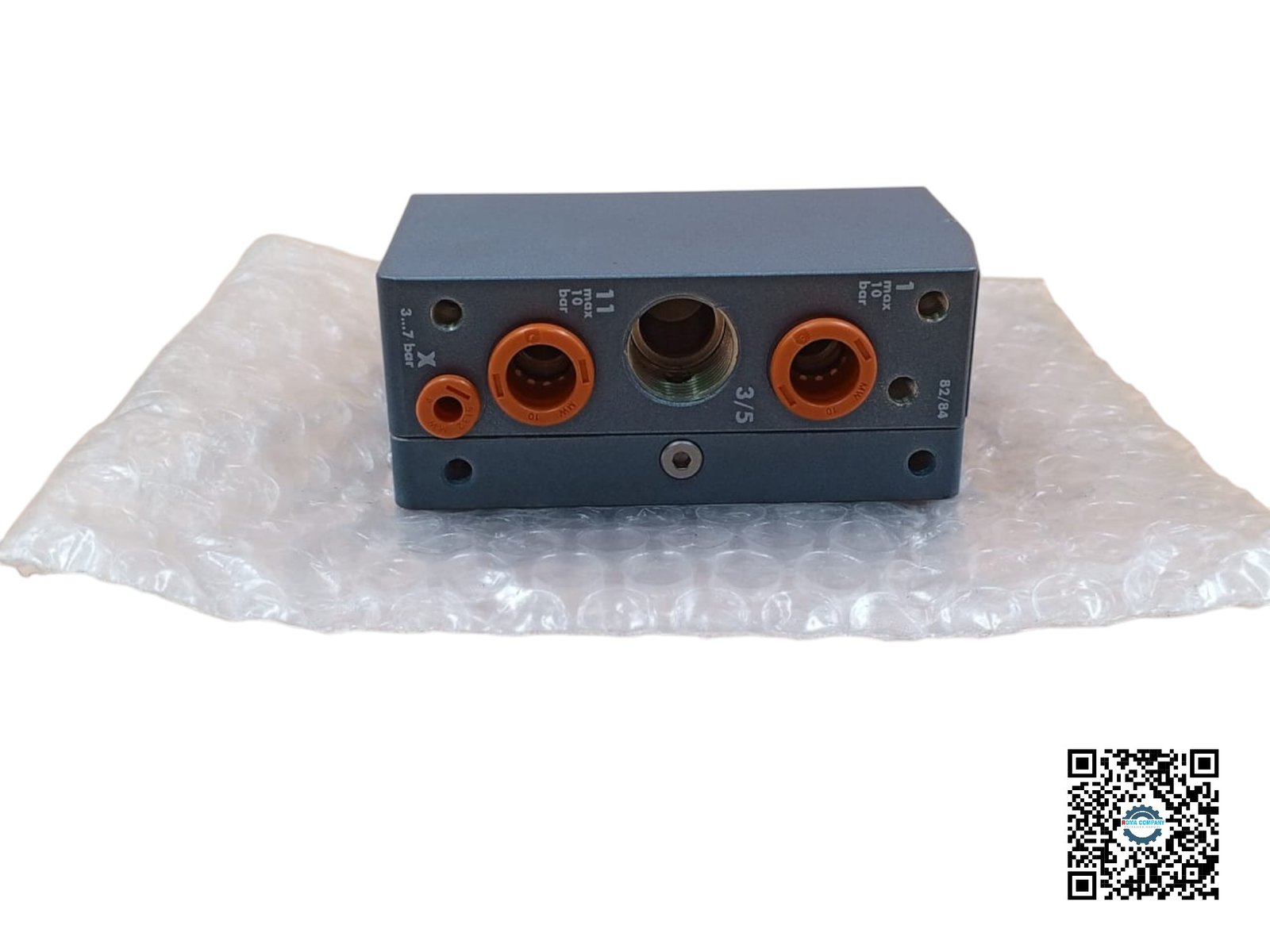

This is a manifold block, designed to mount multiple solenoid valves from the manufacturer’s product line. It provides a common air supply and exhaust channels for the valves, which simplifies the plumbing and wiring of a pneumatic control system. The block has multiple threaded ports for air lines. The label on the side shows the pneumatic symbol and port numbering for the valves that would be mounted on it:

• 1: Pressure supply.
• 3 & 5: Exhaust.
• 2 & 4: Working ports to the actuators.
• 11: Pilot pressure signal for the valve.
• X: Pilot pressure supply port.

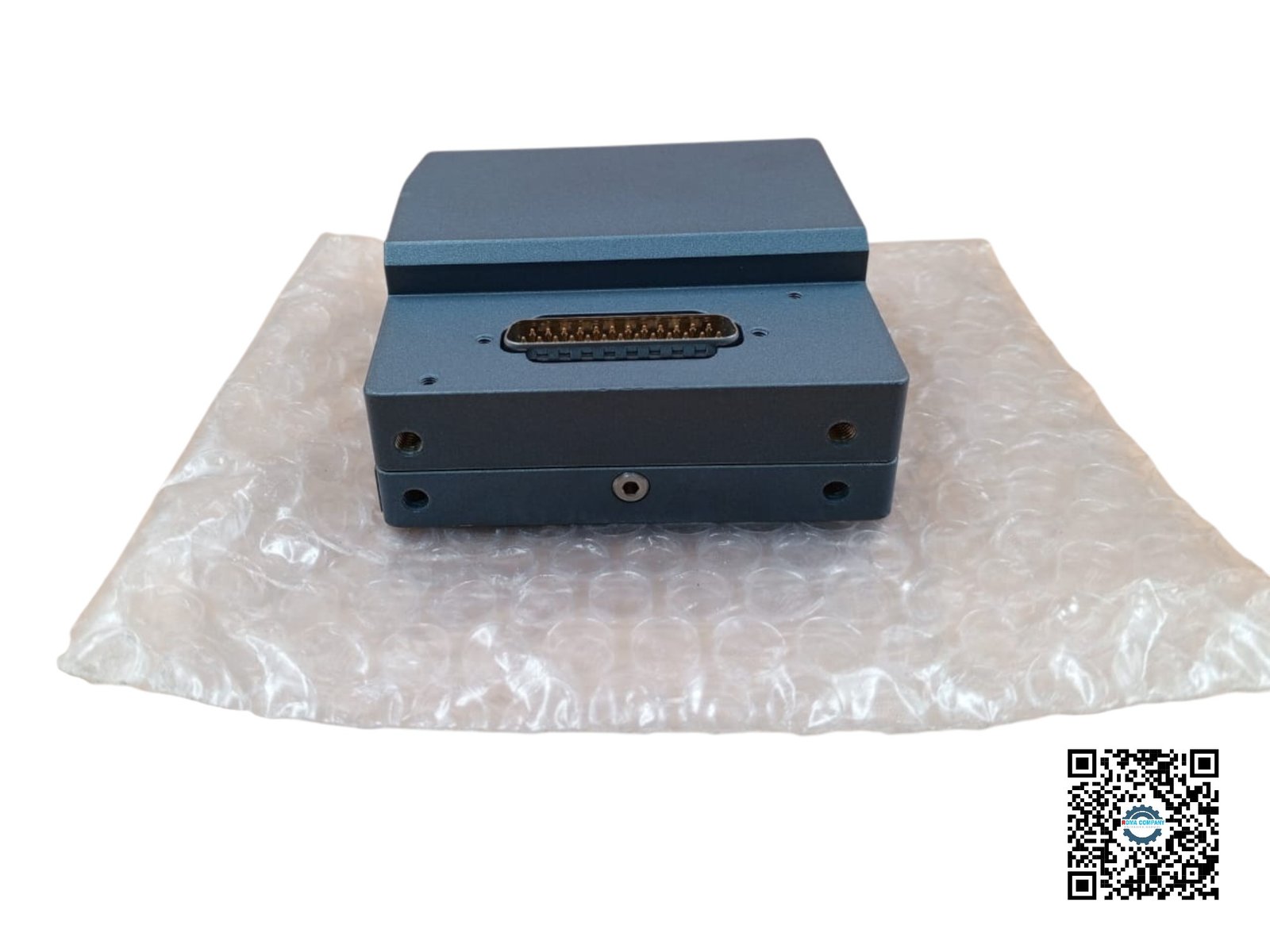

The top of the manifold features a multi-pin electrical connector, likely a D-sub connector, which allows for a single cable to control multiple valves. This greatly simplifies wiring and troubleshooting.

Technical Specifications

• Manufacturer: Metal Work Pneumatic
• Part Number: 0227301200
• Product Type: Valve Manifold
• Connection: Sub-base
• Solenoid Positions: 2 (HDM) and 5 (HDM)
• Origin: Made in Italy
