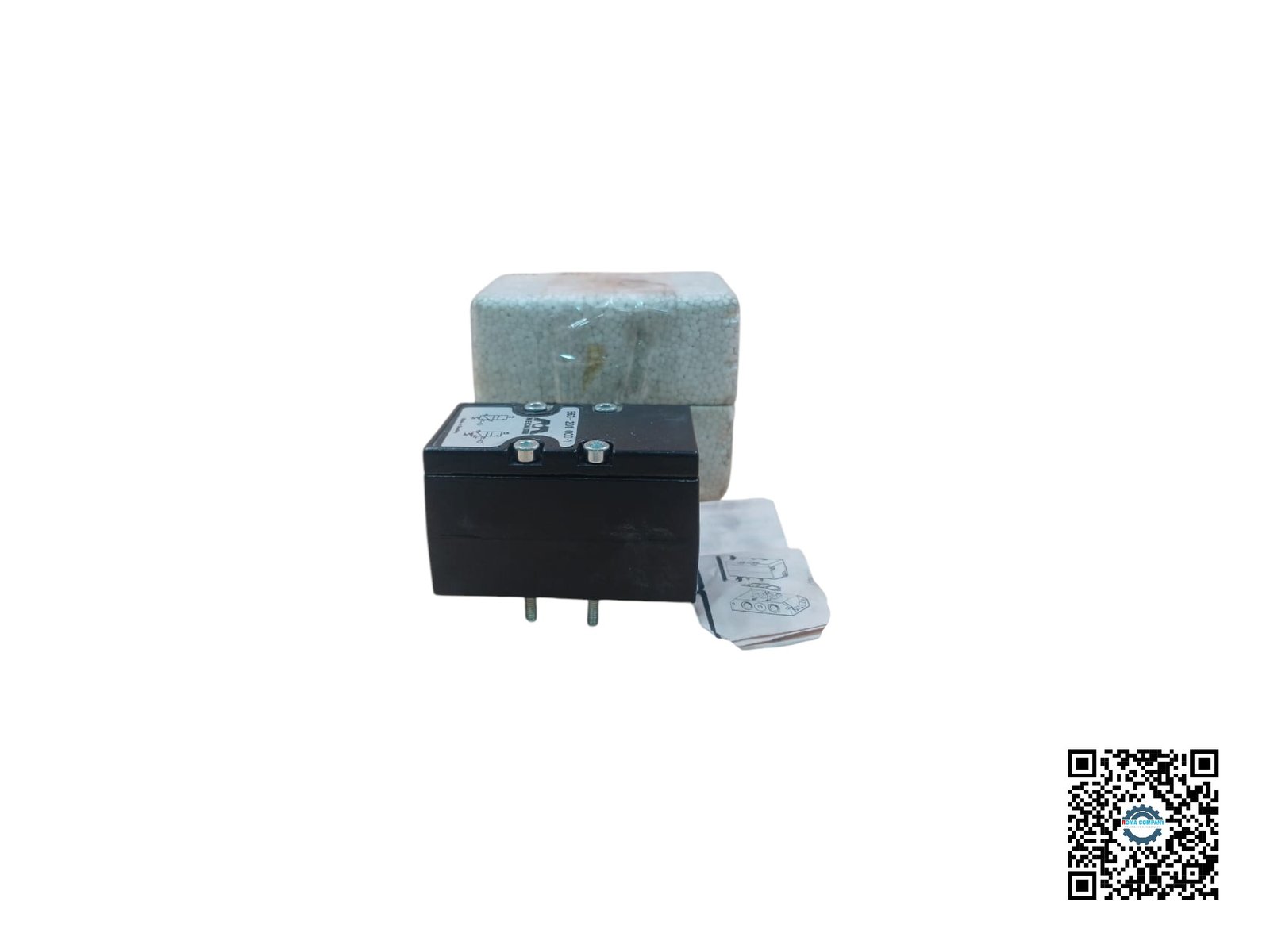

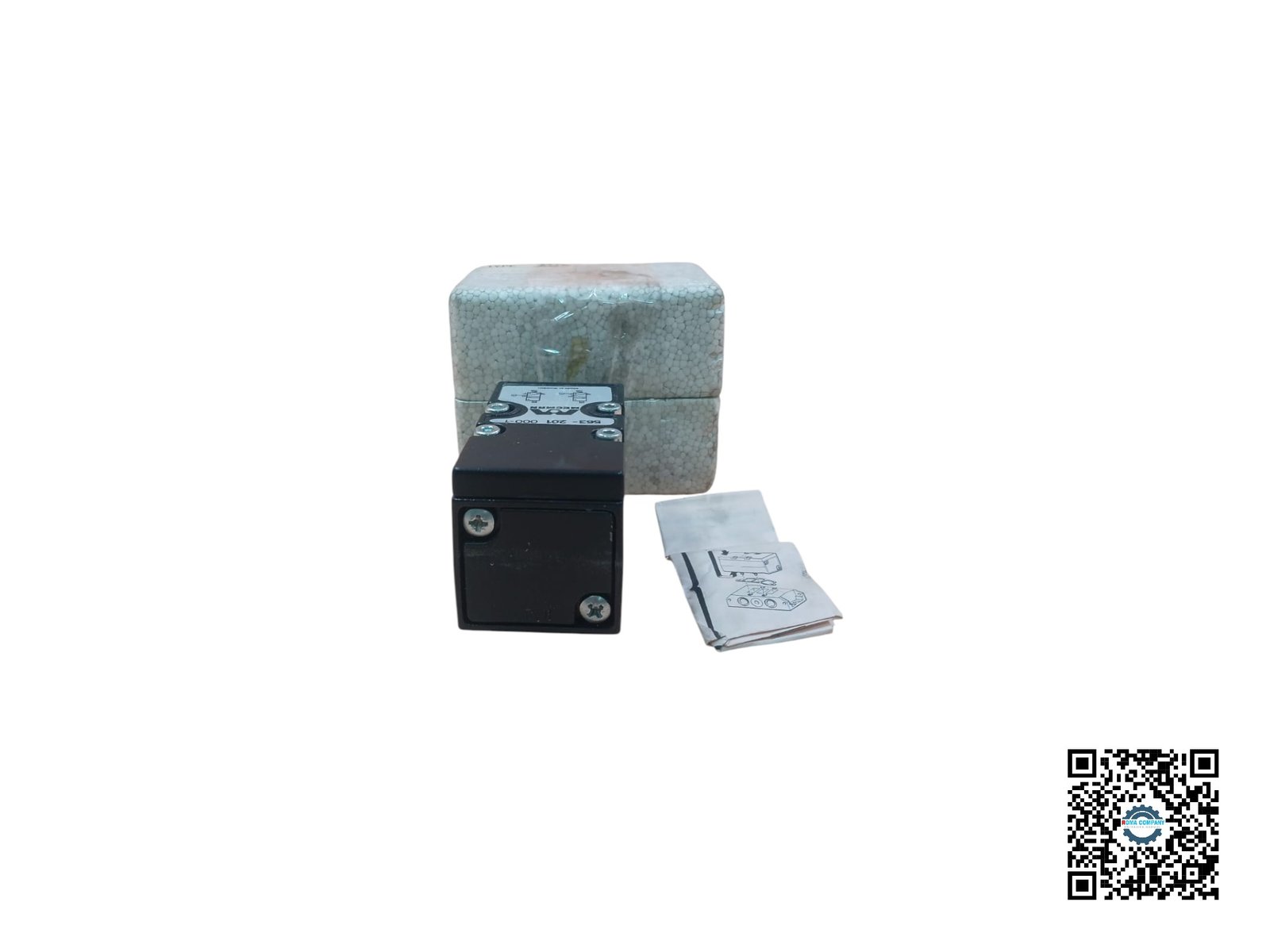

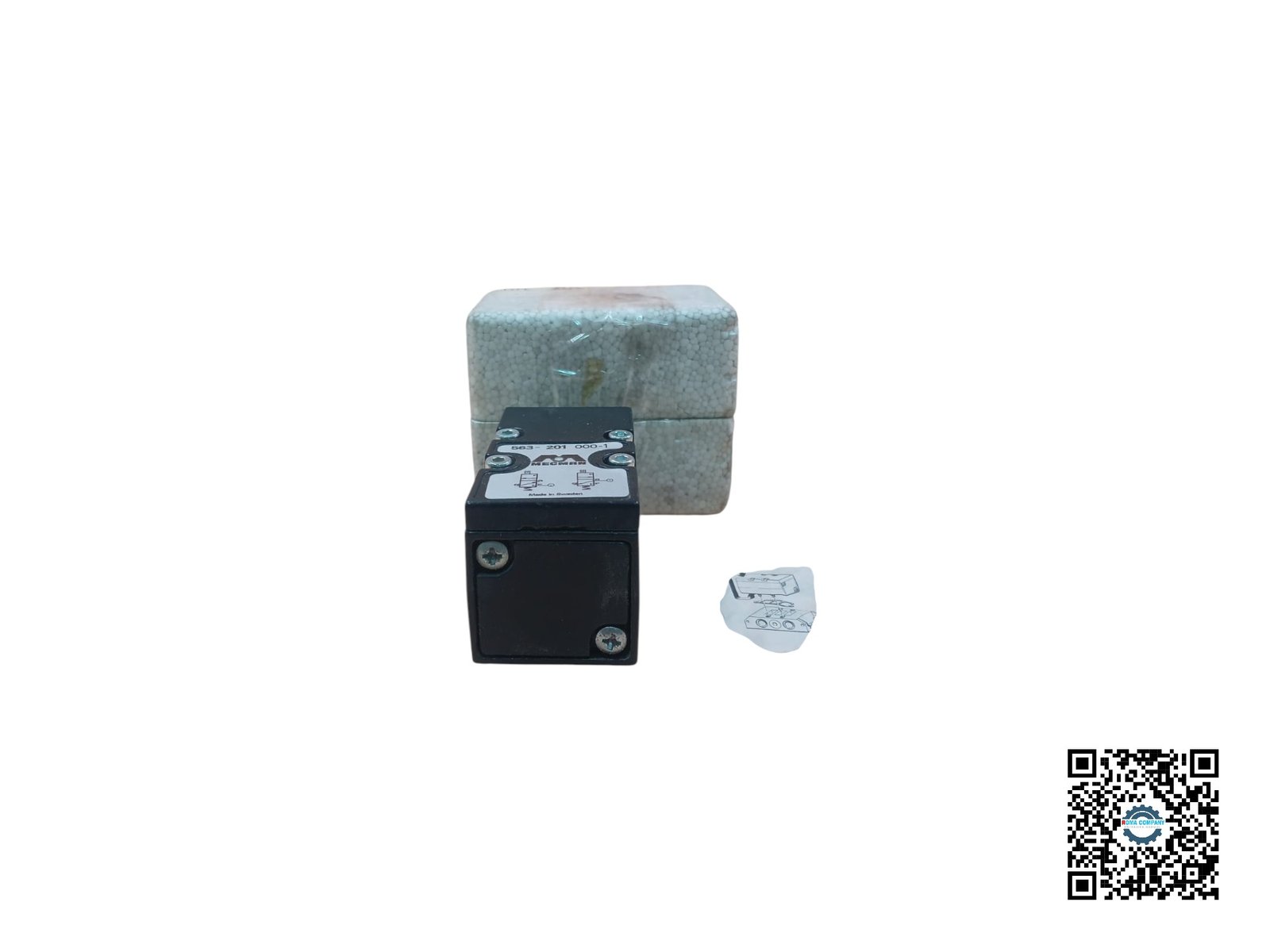

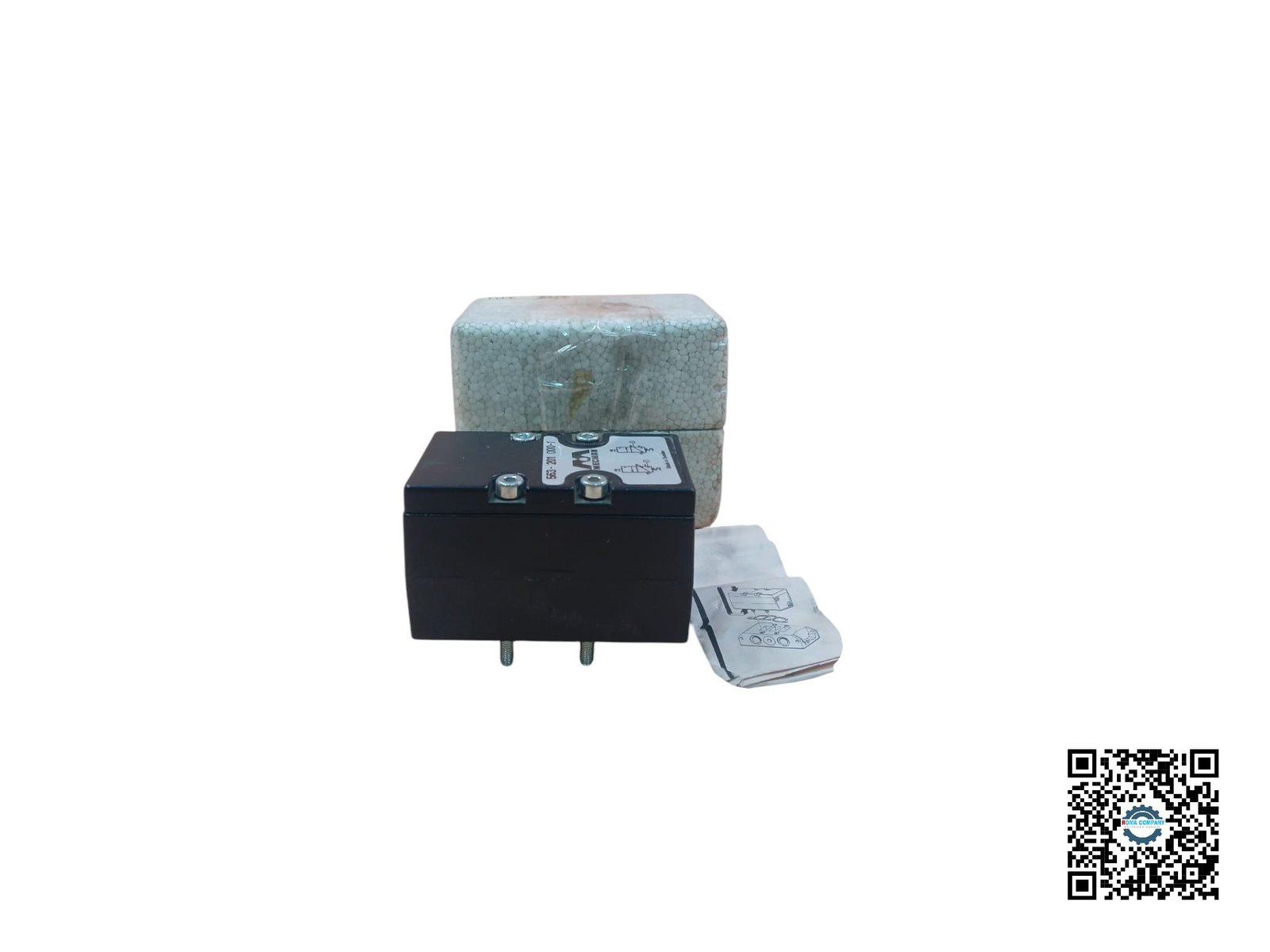

Mecman 563-201 000-1 – 3/2-Way Pneumatic Valve

Mecman 563-201 000-1 – 3/2-Way Pneumatic Valve

The Mecman 563-201 000-1 is a high-performance 3/2-directional valve designed for precise and reliable control of compressed air. This valve, from the Series 563, is pneumatically activated, meaning it is controlled by a pilot pressure signal rather than an electrical one. The valve uses a spring to return to its original position when the signal is removed. Designed for a subbase connection, this valve is an essential component for modular and space-efficient pneumatic control systems.

Quick Navigation

• Key Features
• Key Specifications & Design
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• 3/2-Directional Function: The valve has three ports and two positions, making it suitable for controlling single-acting pneumatic actuators.
• Pneumatic Activation: The valve is activated by a compressed air signal, providing reliable and direct control.
• Spring Return: The valve uses a spring to return to its original position, providing a default state in the absence of a pilot signal.

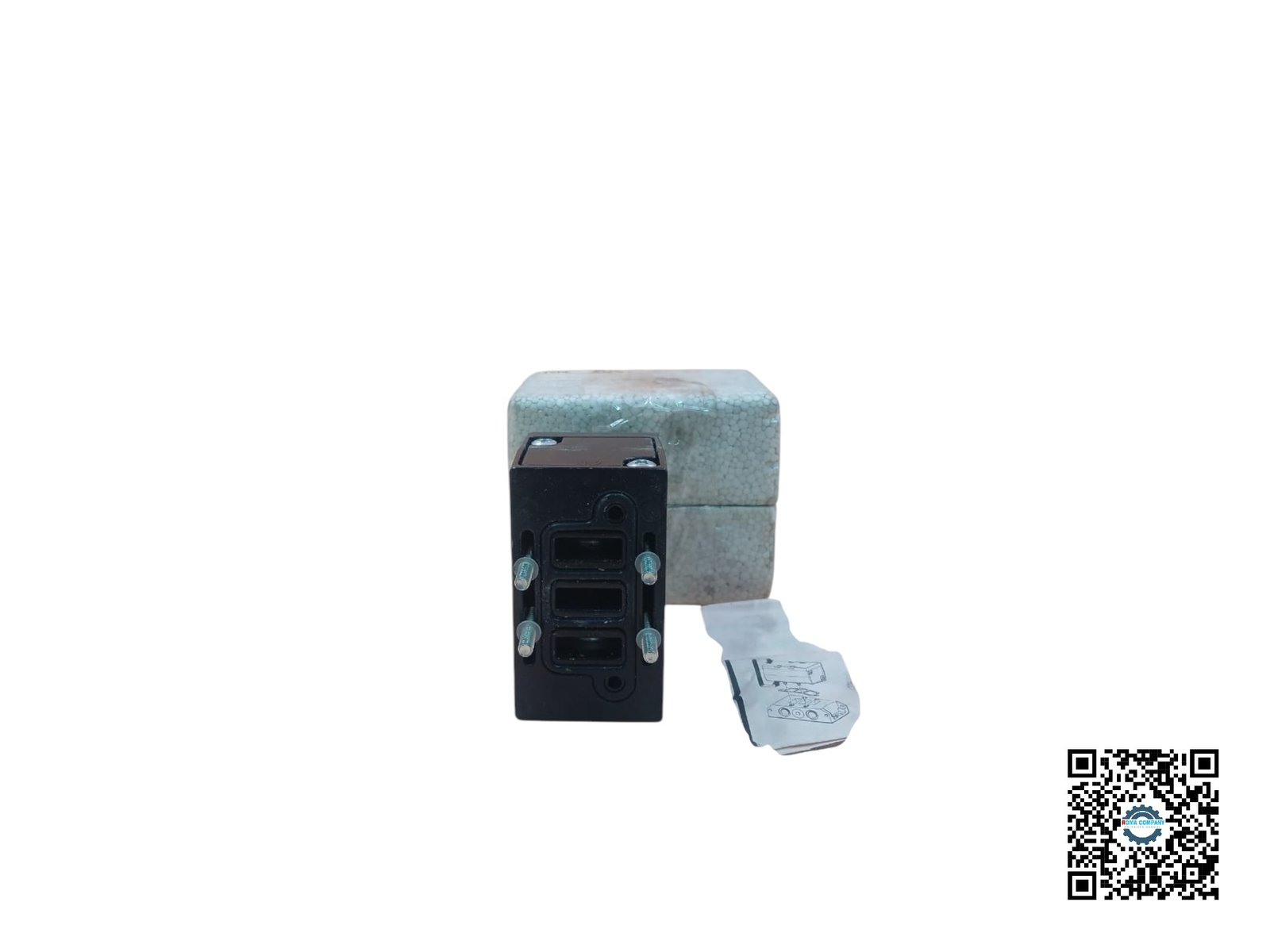

• Subbase Mounting: The design is for subbase connections, which allows for easy installation and maintenance.
• Robust Construction: Engineered for durability and a long service life in demanding industrial environments.

Key Specifications & Design

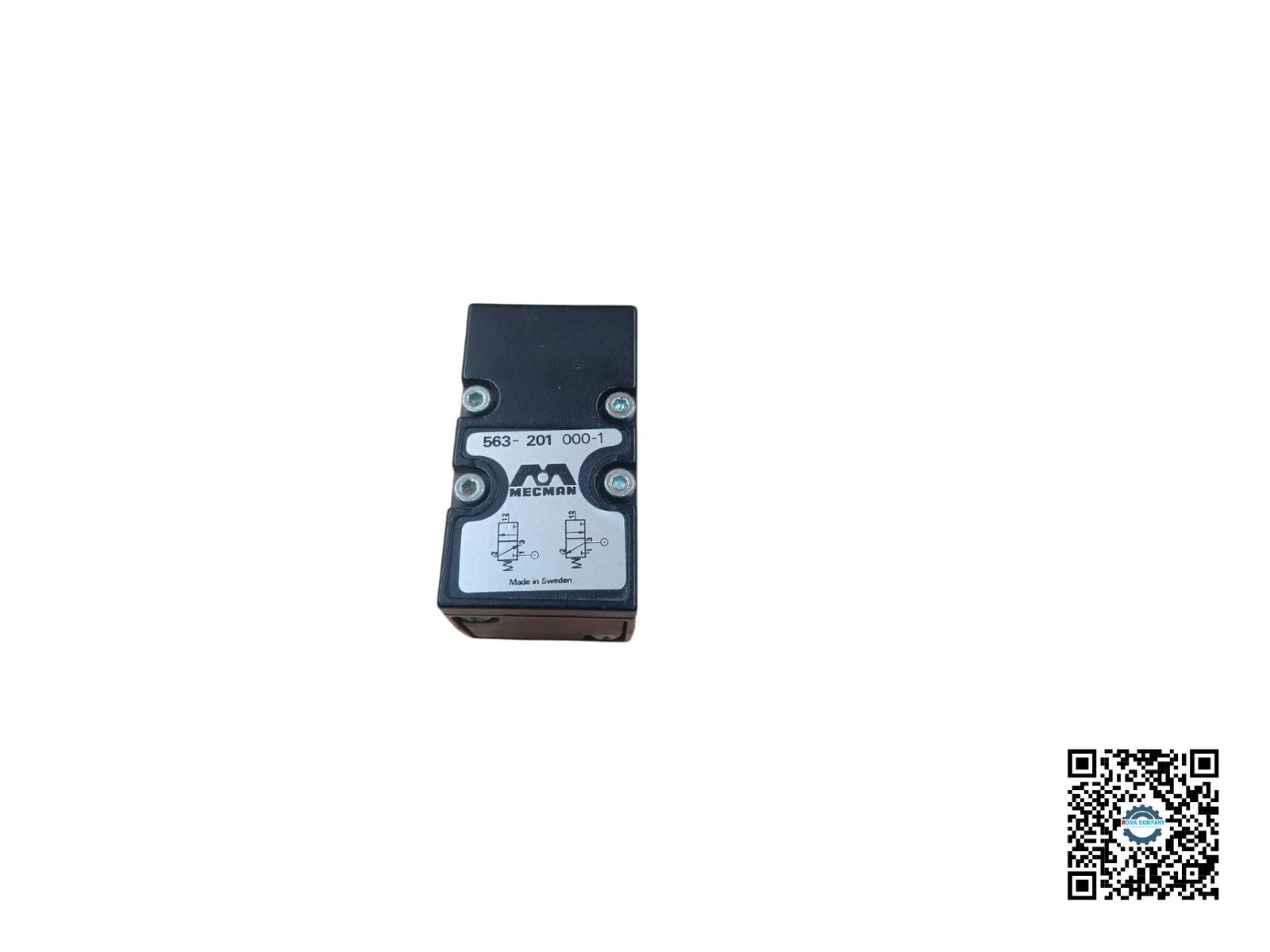

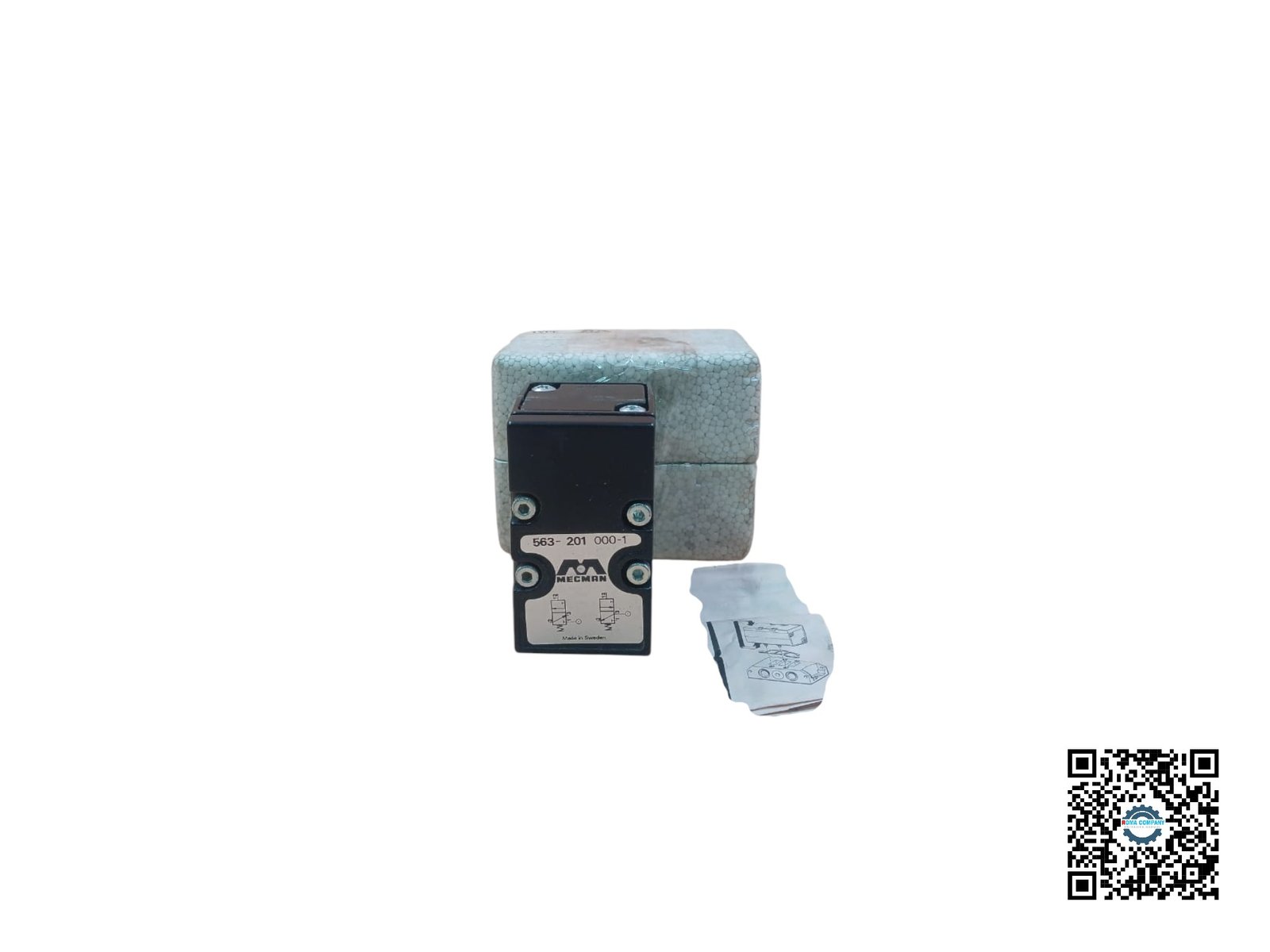

The Mecman 563-201 000-1 is a 3/2-way, pneumatically activated valve with a spring return. The pneumatic symbol on the valve shows three ports (1, 2, 3) and two positions, which is characteristic of a 3/2-way valve. It is designed to be controlled by a pilot pressure signal and uses a spring to return to its original position when the signal is removed. The valve is designed for subbase connections. It is a product of Mecman, a brand now part of Bosch Rexroth.

Technical Specifications

• Manufacturer: Mecman (a brand now part of Bosch Rexroth)
• Part Number: 563-201 000-1
• Product Type: Pneumatic Valve
• Function: 3/2-way
• Connection: Subbase
• Operating Medium: Compressed Air

Applications

This Mecman valve is a fundamental component in many pneumatic control systems for controlling actuators, including:

• Pneumatic Cylinder Control
• Machine and Assembly Automation
• Material Handling Equipment
• Robotics and Automation
