BOSCH 0 820 024 512 – 5/2-Way Double Solenoid Pilot Valve

BOSCH 0 820 024 512 – 5/2-Way Double Solenoid Pilot Valve

The BOSCH 0 820 024 512 is a high-performance 5/2-way double solenoid pilot valve, designed for precise control of compressed air flow. This valve body is part of a modular system with a sub-base connection. The valve is designed for reliable and repeatable operation, making it ideal for the control of double-acting pneumatic cylinders. It is engineered for demanding automation tasks with a maximum pressure of 12 bar.

Quick Navigation

• Key Features
• About this Valve Function
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• 5/2-Way Function: The valve has five ports and two positions, which is the standard configuration for controlling double-acting pneumatic cylinders.
• Double Solenoid Pilot Operation: The valve is actuated by two solenoid pilots, providing a bi-stable function.
• High Pressure Rating: Capable of withstanding a maximum pressure of 12 bar, ensuring durability and reliability.

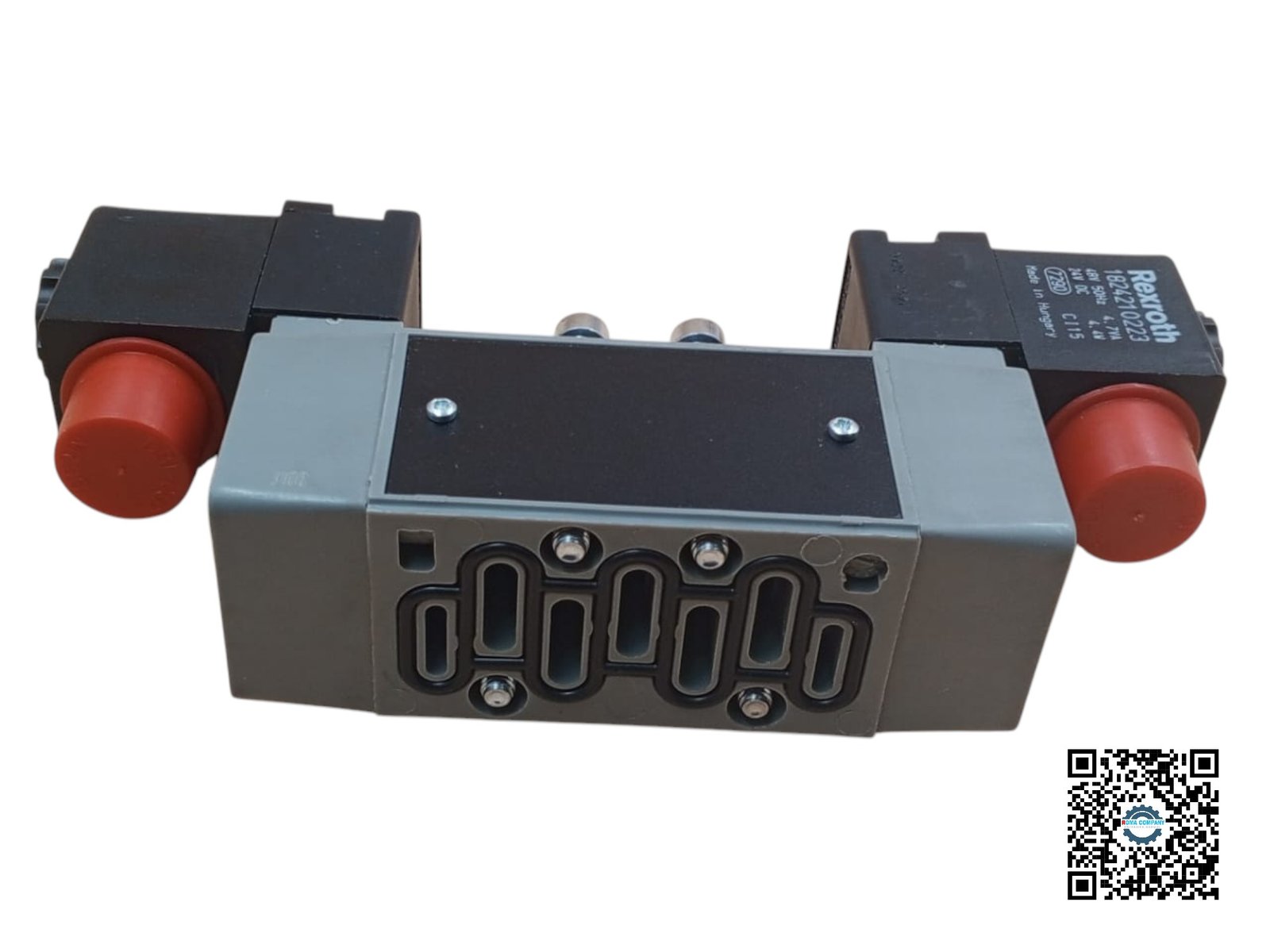

• Modular Sub-Base Connection: Designed for mounting on a sub-base, which simplifies plumbing and wiring for a clean, modular setup.
• Robust Design: Engineered for durability and high-cycle applications in demanding industrial environments.

About this Valve Function

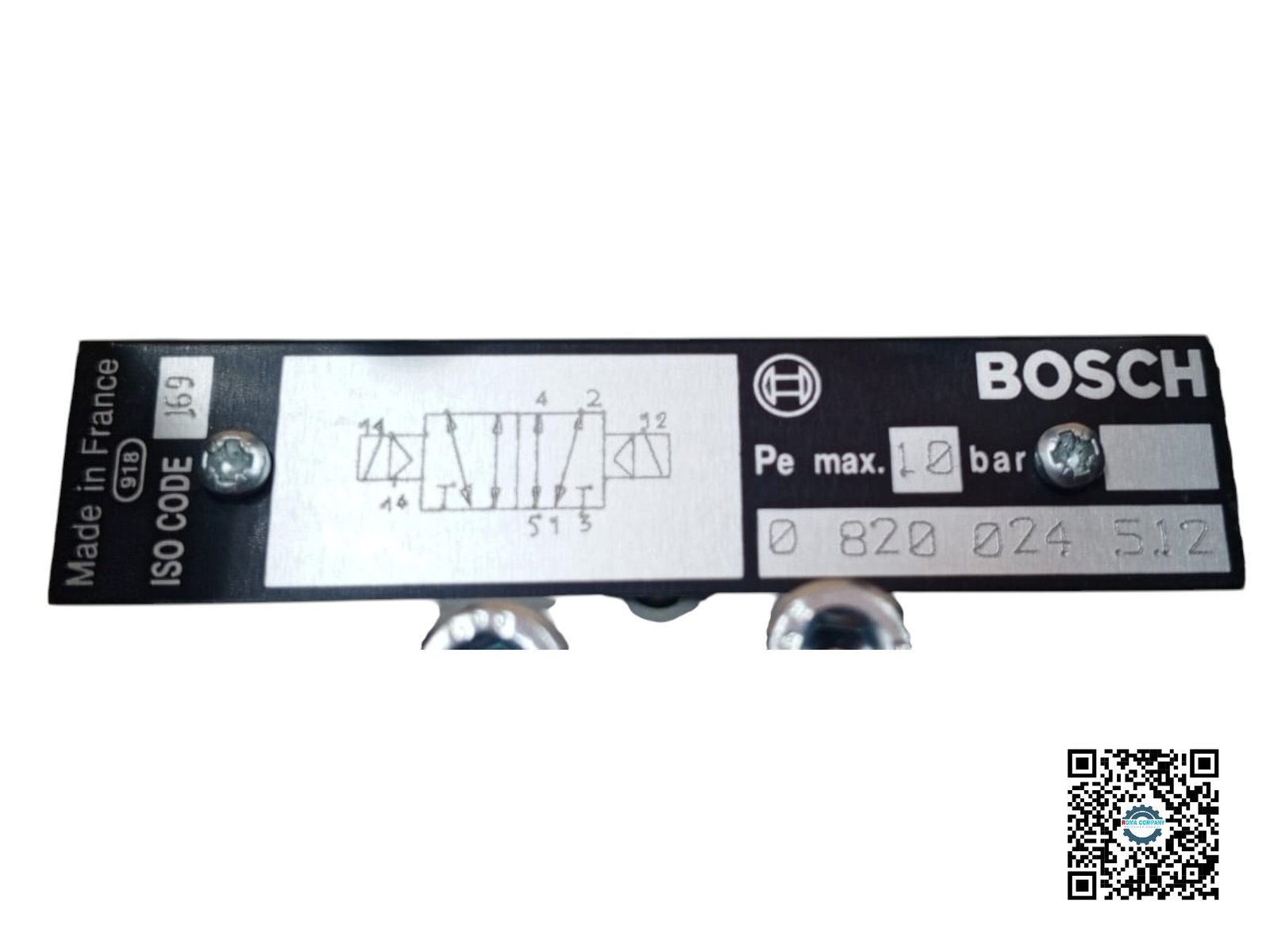

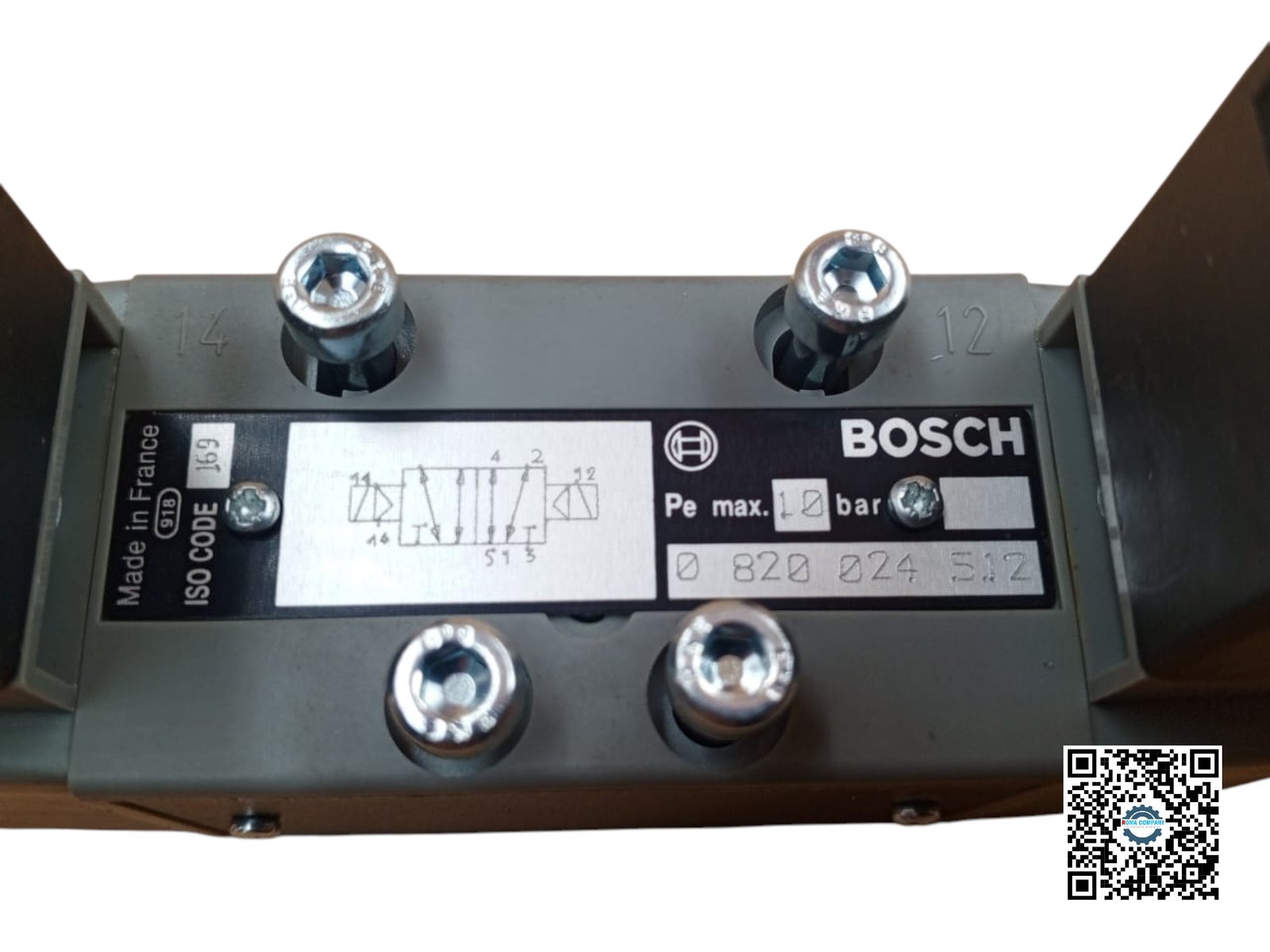

The diagram on the label clearly shows that this is a 5/2-way valve. This means it has 5 ports: a pressure inlet port (1), two work ports (2 and 4), and two exhaust ports (3 and 5). The valve has two stable states. The diagram also indicates that this is a double pilot-operated valve. The pilot ports, labeled 14 and 12, are used to shift the valve spool. When air pressure is supplied to port 14, the valve shifts to one position, and when pressure is applied to port 12, it shifts to the other.

Technical Specifications

• Manufacturer: BOSCH
• Part Number: 0 820 024 512
• Product Type: Solenoid Pilot Valve
• Function: 5/2-way
• Working Pressure: Up to 12 bar
• Operating Method: Solenoid
• Voltage: 24V DC
• Connection Type: Sub-base
• Solenoid Count: Double Solenoid

Applications

This BOSCH valve is a fundamental component in many pneumatic control systems for controlling actuators, including:

• Pneumatic Cylinder Control
• Machine and Assembly Automation
• Material Handling Equipment
• Robotics and Automation
