JOUCOMATIC 54292028 – ISO 2 5/3-Way Pressure Held Solenoid Valve
A JOUCOMATIC 54292028 is a 5/3-way solenoid air-operated spool valve with a pressure-held center, an ISO 2 size, and a max pressure of 12 bar.
Description JOUCOMATIC 54292028 – ISO 2 5/3-Way Pressure Held Solenoid Valve
The JOUCOMATIC 54292028 is a high-performance **5/3-way solenoid air-operated spool valve** designed for versatile and precise control of compressed air or neutral gases. Conforming to the **ISO 5599/1 size 2** standard, this valve is designed for sub-base mounting, which simplifies installation and maintenance. The valve’s key feature is its **pressure-held center position (W1)**, where the working ports are blocked while the cylinder is held by a pneumatic pilot signal. This allows for a cylinder’s piston to be stopped and held in any intermediate position, a crucial feature for applications requiring mid-stroke stopping.
Quick Navigation
Key Features
- 5/3-Way Function: The valve has five ports and three positions, with a unique pressure-held center position.
- Pressure-Held Center: In the neutral position, a cylinder’s piston is held in place by trapped air, providing a rigid mid-stroke stop.
- Double Solenoid Actuation: The valve is actuated by two solenoid pilot signals and returns to the center position via springs.
- ISO 2 Standard: Conforms to the ISO 5599/1 standard for size, ensuring a high flow rate of 2800 l/min.
- Wide Pressure Range: It can operate with a working pressure of 3 to 10 bar (internal pilot) or up to 12 bar (external pilot).
About this Valve Function

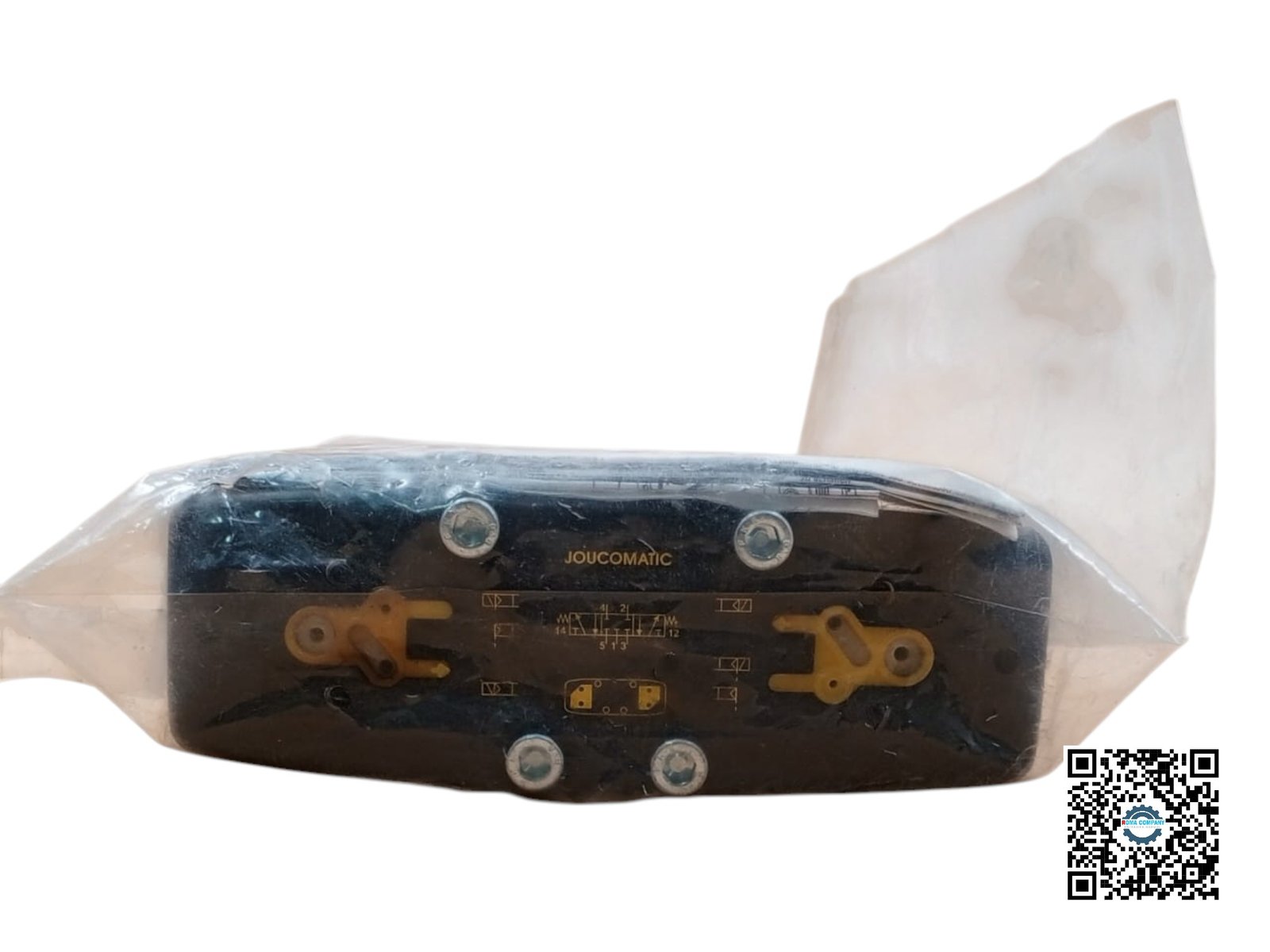

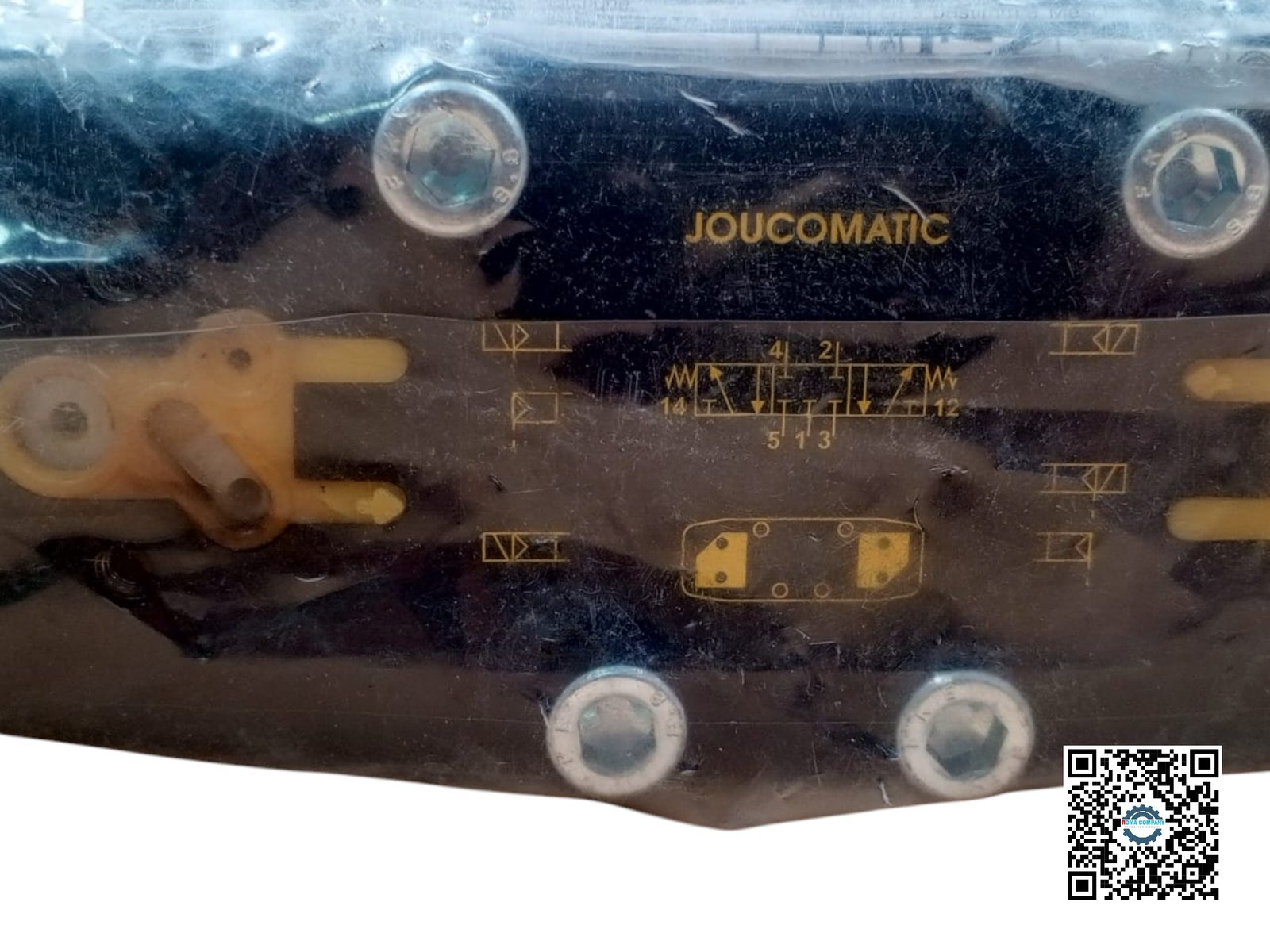

The diagram on the label identifies it as a 5/3-way valve with a pressure-held center. This means it has 5 ports (1 pressure, 2 work, 2 exhaust) and 3 positions. The center position is a “pressure held” or “closed center” position (W1), where the working ports (2 and 4) are blocked and isolated from the pressure and exhaust ports. This allows a pneumatic cylinder, for example, to be stopped and held in an intermediate position.
The valve is solenoid air-operated with pilot signals. The labels 14 and 12 indicate the pilot ports. A signal to port 14 shifts the spool to the left position, and a signal to port 12 shifts it to the right. The valve stays in the center position when there is no pilot signal.
Technical Specifications
- Manufacturer: JOUCOMATIC
- Part Number: 54292028
- Product Type: Solenoid Valve
- Function: 5/3-way, Pressure Held Center

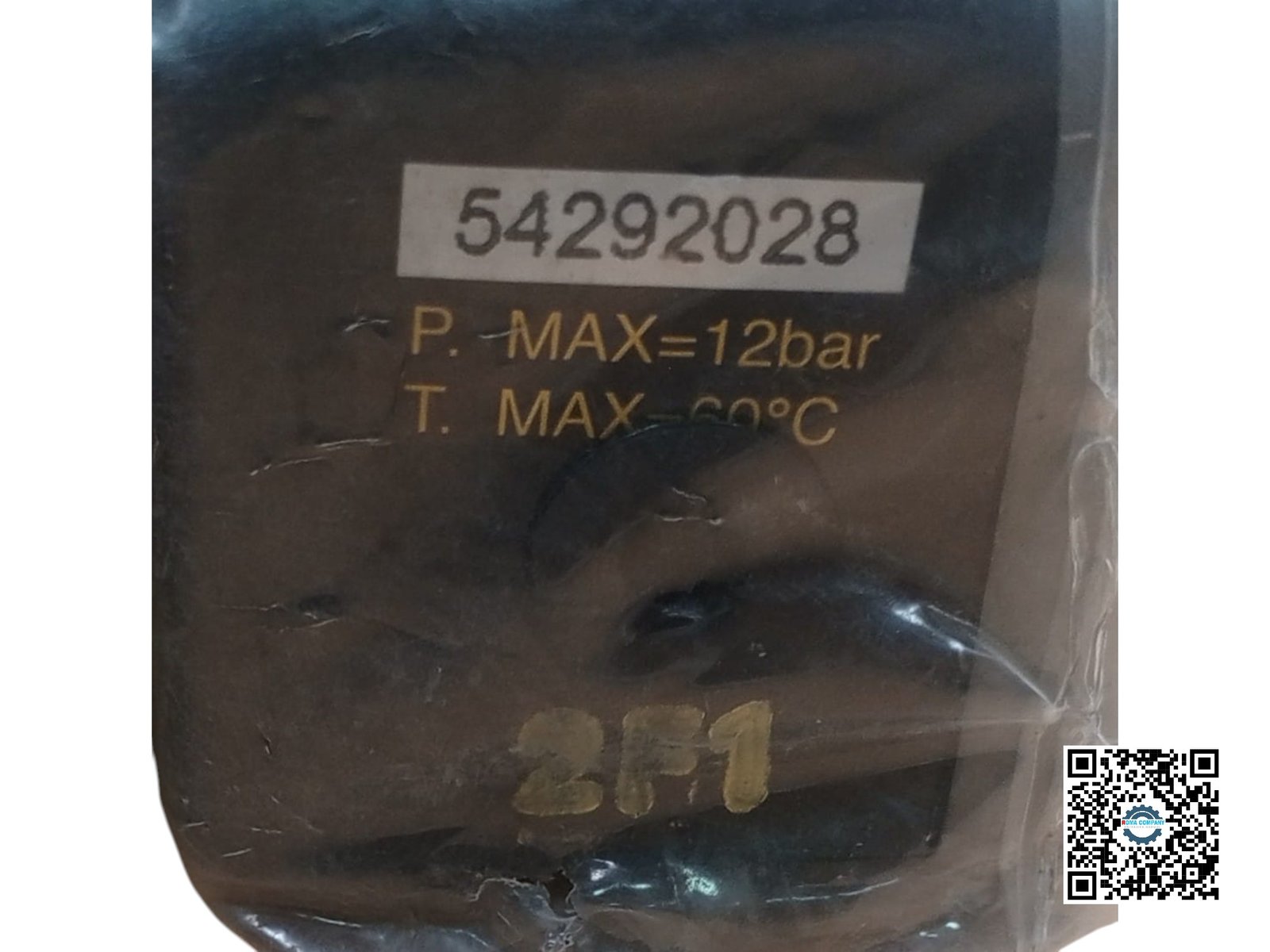

- Maximum Pressure: 12 bar
- Operating Pressure: 3-10 bar (internal) / -0.950-12 bar (external)
- Flow Rate: 2800 l/min
- ISO Standard: ISO 5599/1, Size 2
- Operating Method: Solenoid

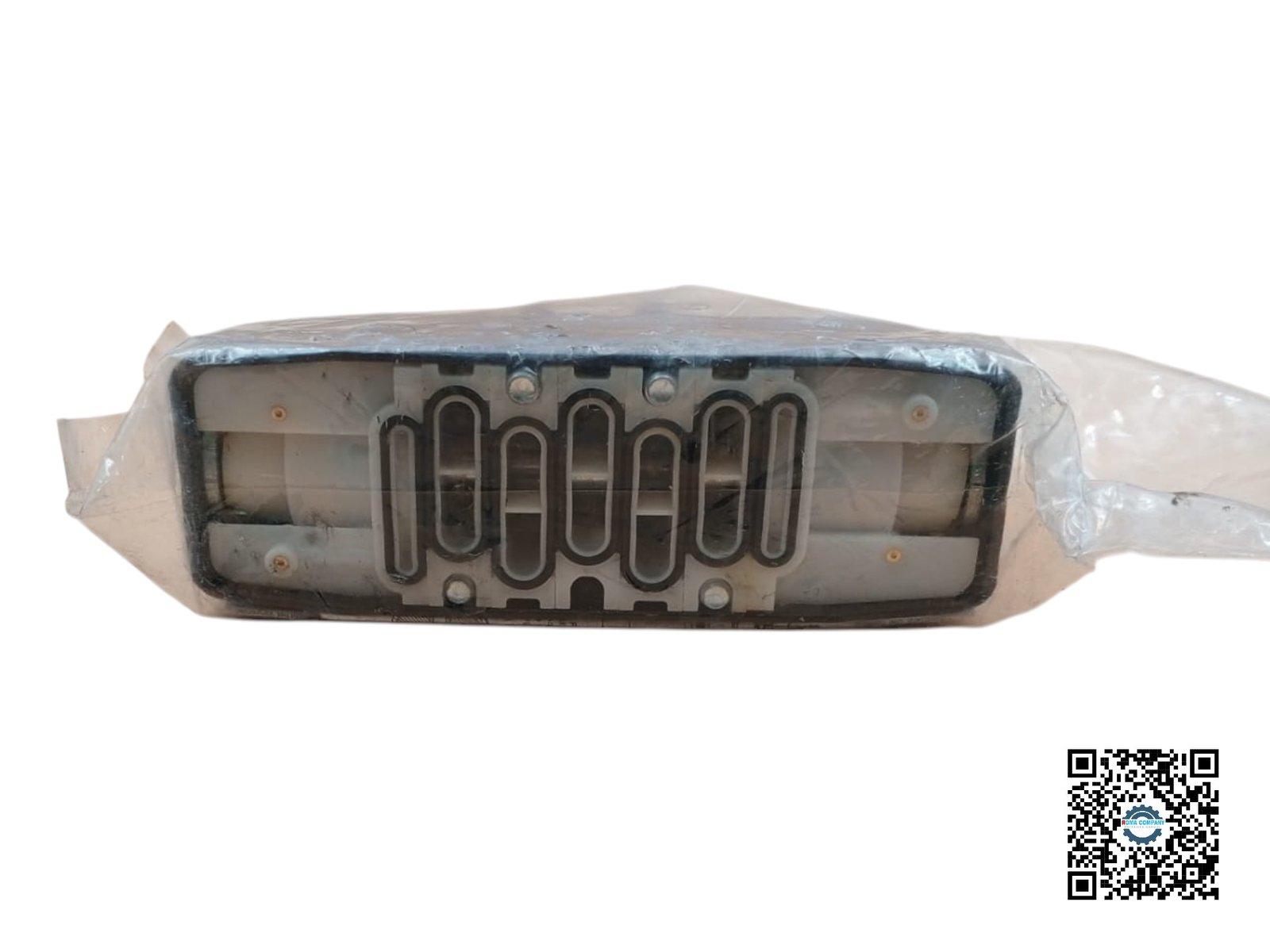

- Connection Type: Sub-base
- Solenoid Count: Double Solenoid
Applications
This JOUCOMATIC valve is a fundamental component in many pneumatic control systems for controlling actuators, including:
- Pneumatic Cylinder Control with Mid-Stroke Halting
- Machine and Assembly Automation
- Material Handling Equipment
- Robotics and Automation
Why Choose ROMA Company for industrial supplies?
ROMA Industrial is your trusted partner for a full range of industrial supplies across categories like Motion Control & Mechatronics, Electrical & Automation, and Fluid Power & Control. We are committed to providing top-tier products and service to keep your operations running smoothly. We partner with world-class shipping providers like FedEx, DHL, and UPS to ensure fast and reliable delivery worldwide.
| Manufacturer | |
|---|---|
| Port Size | |
| Function | , |
| Voltage | |
| Process Type The used fluid with the product | |
| Operating Method |
Solenoid |
| Connection Type | |
| Solenoid Count |
Double Solenoid |
