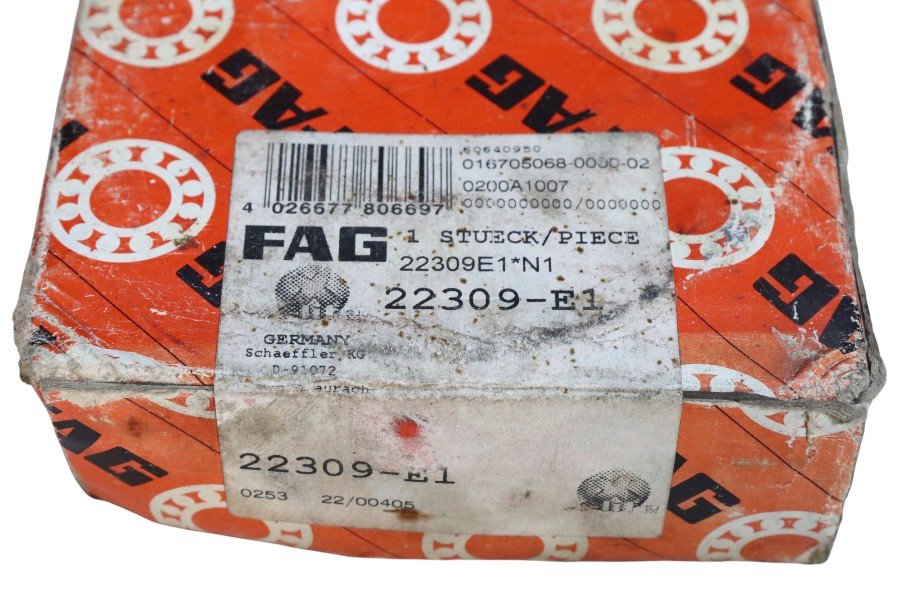

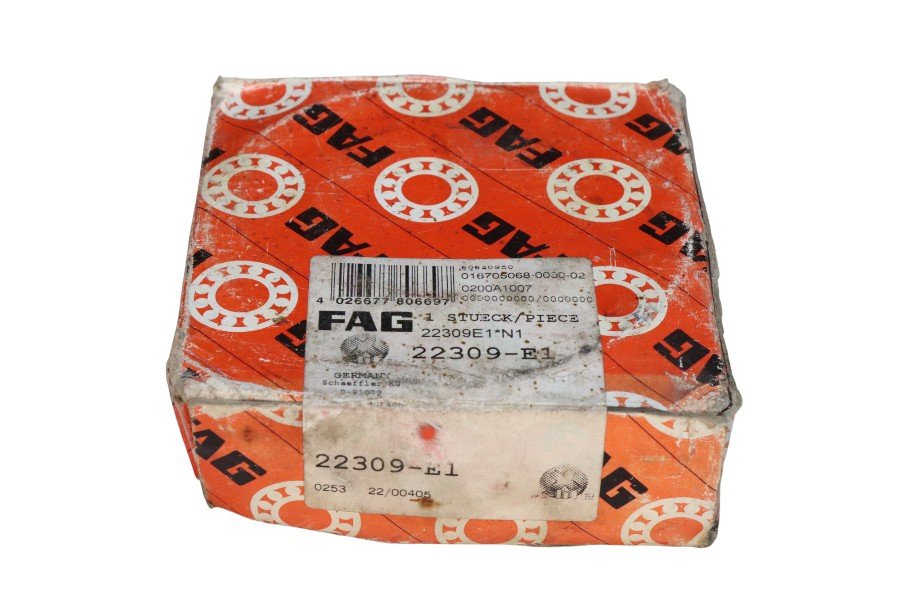

FAG 22309-E1 – 45 mm Spherical Roller Bearing

FAG 22309-E1 – 45 mm Spherical Roller Bearing

The FAG 22309-E1 is a high-performance spherical roller bearing designed to handle very heavy radial and axial loads. Its robust, self-aligning design compensates for shaft misalignment, and it features an optimized internal design for increased load capacity. This makes it a dependable choice for demanding applications where reliability is essential.

—

Quick Navigation

• About This Bearing
• Applications
• Why ROMA Industrial Company
• Technical Specifications
• Key Features & Benefits

—

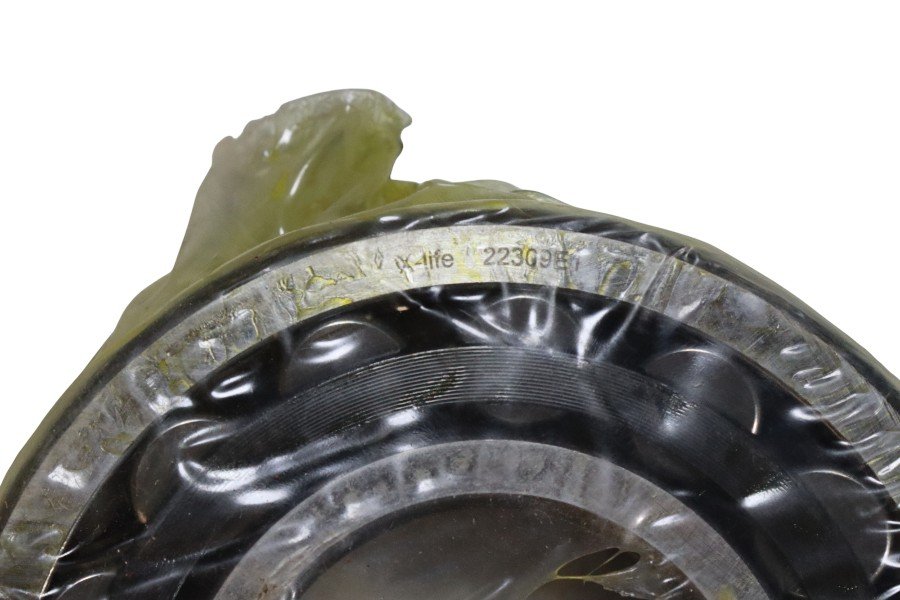

About This Bearing

This product is a double-row spherical roller bearing. Its self-aligning capability is a key feature, as it allows the bearing to tolerate considerable shaft misalignment without affecting performance. The 22309-E1 part number provides crucial design information: the E1 suffix indicates an optimized internal design for increased dynamic load capacity. This combination of features makes it a robust and durable solution for challenging applications.

—

Applications

This spherical roller bearing is suitable for a variety of heavy-duty applications where misalignment and high loads are a concern, including:

• Mining, Cement, and Construction Equipment
• Pulp and Paper Processing Machinery
• Heavy Industrial Gearboxes
• Power Generation Equipment
• Marine and Offshore Equipment

—

Why ROMA Industrial Company

ROMA Industrial is your trusted partner for a full range of industrial supplies across categories like Motion Control & Mechatronics, Electrical & Automation, and Fluid Power & Control. We are committed to providing top-tier products and service to keep your operations running smoothly. We partner with world-class shipping providers like FedEx, DHL, and UPS to ensure fast and reliable delivery worldwide. We accept returns to fulfill your satisfaction and accept variable payments methods including PayPal, credit cards, and more. We are a supplier in Europe, USA, and Saudi Arabia.

—

Technical Specifications

• Manufacturer: FAG (part of the Schaeffler Group)
• Part Number: 22309-E1
• Bearing Type: Spherical Roller Bearing
• Dimensions:
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 100 mm
  • Width (B): 36 mm
• Bore Type: Cylindrical
• Cage Material: Steel
• Dynamic Load Rating: 180 kN
• Static Load Rating: 200 kN
• Limiting Speed: 6,300 r/min
• Reference Speed: 4,800 r/min
• Weight: N/A

—

Key Features & Benefits

• High Load Capacity: Engineered to handle very heavy radial and axial loads, with a dynamic load rating of 180 kN.
• Self-Aligning: Tolerates significant shaft misalignment and deflection, preventing premature bearing failure.
• Enhanced Durability: The “E1” optimized internal design ensures a longer service life and high performance in demanding conditions.
• Versatile Use: Suitable for a wide range of heavy-duty applications.
