SKF H 317 – 80 mm Adapter Sleeve

SKF H 317 – 80 mm Adapter Sleeve

The SKF H 317 is an adapter sleeve designed to mount bearings with a tapered bore onto a cylindrical shaft. This crucial accessory is split along its length and, when tightened, it compresses onto the shaft, providing a secure fit for the bearing. It is a fundamental component for reliably positioning bearings that lack a taper, ensuring stable and long-lasting performance in various industrial applications.

—

Quick Navigation

• About This Adapter Sleeve
• Applications
• Why ROMA Industrial Company
• Technical Specifications
• Key Features & Benefits

—

About This Adapter Sleeve

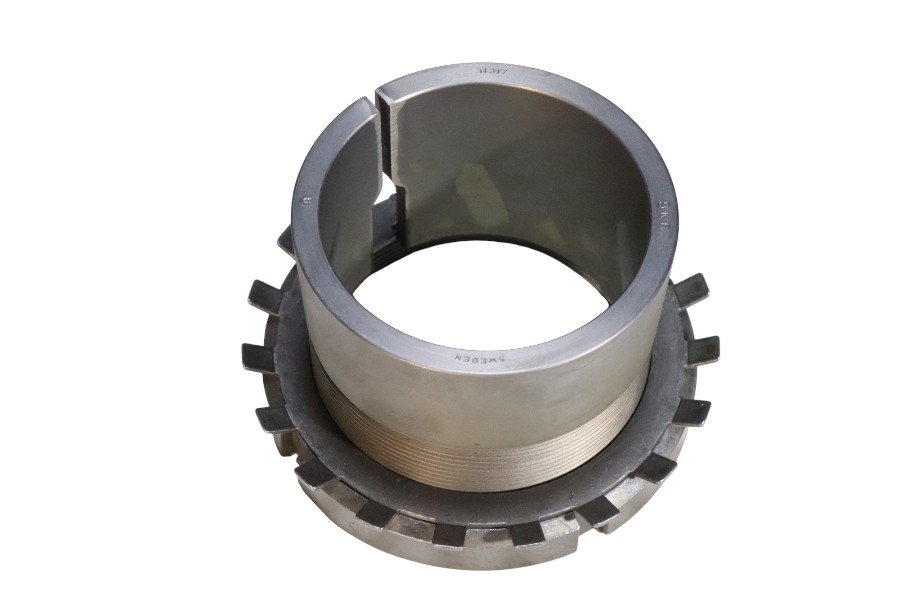

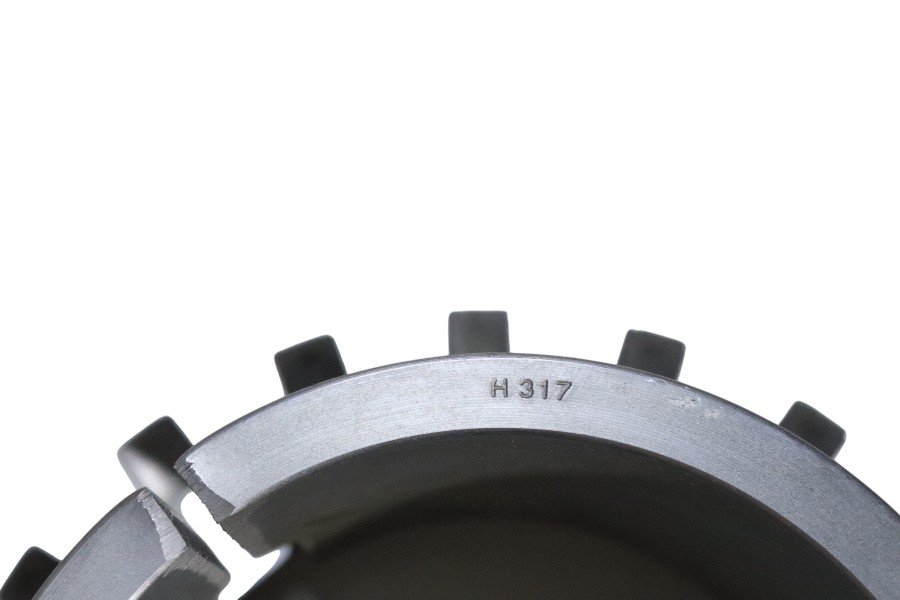

This product is an adapter sleeve, which is a key component for mounting bearings with a tapered bore onto a cylindrical shaft. The H 317 designation indicates its specific dimensions, designed to fit a shaft with a diameter of 80 mm. The sleeve works by being slid onto the shaft, and as the bearing is pushed up its tapered surface, the sleeve tightens and secures the bearing in place. This method creates a strong and reliable friction fit without the need for a precision-machined shaft with a step or shoulder. It is compatible with a range of bearings, including the 1217 K, 1317 K, 22217 E, and 23217 E series.

—

Applications

This adapter sleeve is suitable for mounting bearings in a variety of industrial applications, including:

• Conveyor Systems
• Material Handling Equipment
• Industrial Fans
• Pumps and Compressors
• General Industrial Machinery

—

Why ROMA Industrial Company

ROMA Industrial is your trusted partner for a full range of industrial supplies across categories like Motion Control & Mechatronics, Electrical & Automation, and Fluid Power & Control. We are committed to providing top-tier products and service to keep your operations running smoothly. We partner with world-class shipping providers like FedEx, DHL, and UPS to ensure fast and reliable delivery worldwide. We accept returns to fulfill your satisfaction and accept variable payments methods including PayPal, credit cards, and more. We are a supplier in Europe, USA, and Saudi Arabia.

—

Technical Specifications

• Manufacturer: SKF
• Part Number: H 317
• Part Type: Adapter Sleeve
• Dimensions:
  • Shaft Diameter: 80 mm
  • Inner Diameter (d): 75 mm
  • Outer Diameter (d₃): 105 mm
  • Overall Width (B): 64 mm
• Matching Bearing (nominal): 1217 K, 1317 K, 22217 E, 23217 E
• Material: Steel
• Weight: N/A

—

Key Features & Benefits

• Secure Mounting: Provides a reliable and strong friction fit for bearings with a tapered bore.
• Simplified Installation: The sleeve simplifies the mounting process, making it an efficient solution for a variety of shafts.
• Durable Material: Made from steel for robust and long-lasting performance.
• Versatile Use: Compatible with a wide range of popular self-aligning bearings.
