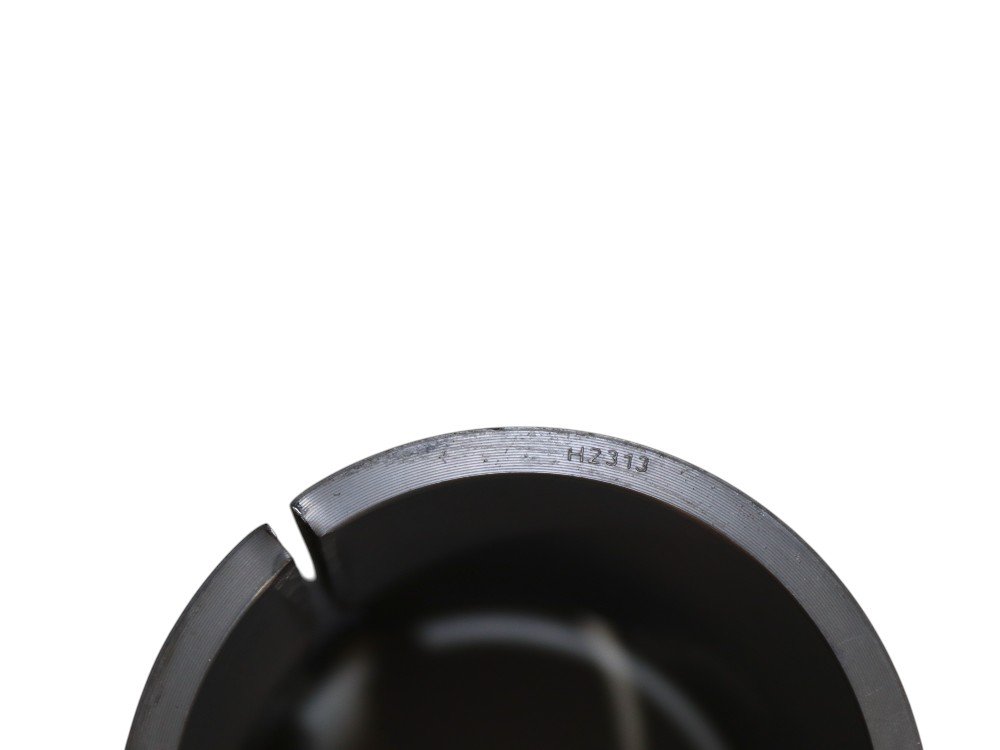

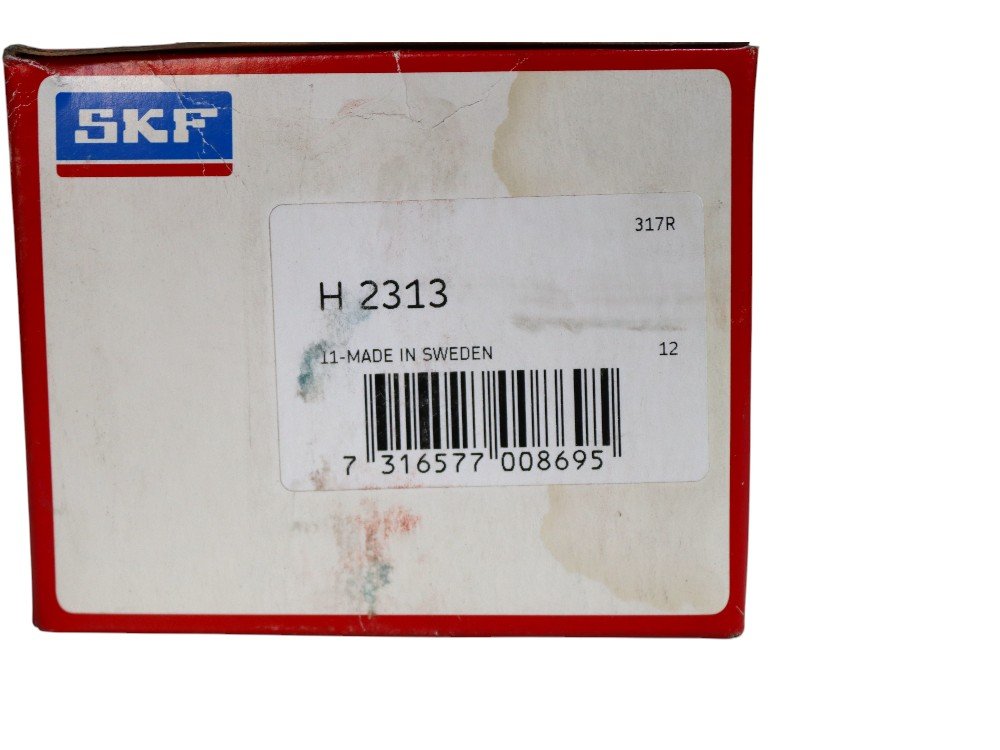

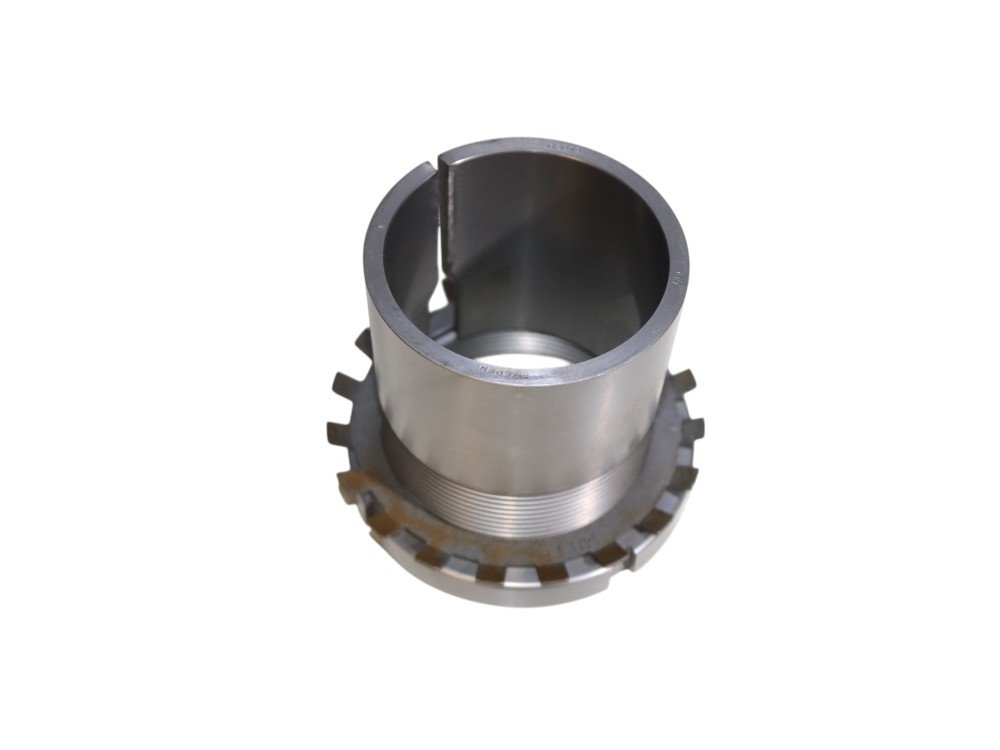

SKF H 2313 – 60 mm Adapter Sleeve

SKF H 2313 – 60 mm Adapter Sleeve

The SKF H 2313 is a precision-engineered adapter sleeve designed for securely mounting bearings with a tapered bore onto a cylindrical shaft. It is a crucial accessory that simplifies the installation process, eliminating the need for a stepped or specially machined shaft. This standardized component, which includes a locknut and lock washer, ensures a tight and reliable fit for the bearing, preventing axial movement and ensuring correct operation.

—

Quick Navigation

• About This Adapter Sleeve
• Technical Specifications
• Key Features & Benefits

—

About This Adapter Sleeve

This product is an **adapter sleeve**, a component that serves as an interface between a straight cylindrical shaft and a bearing with a tapered bore. The **H 2313** designation is a standardized part number, meaning its dimensions are consistent across different manufacturers. The sleeve is first slid onto the shaft. The tapered-bore bearing is then pushed onto the sleeve, and a locknut (KM13) is used to force the bearing up the tapered surface until the correct fit is achieved. This process creates a secure friction fit. The assembly is then locked in place with a lock washer (MB13). This method provides a simple and effective way to mount bearings that would otherwise require a precision-machined shaft with a step or shoulder.

—

Technical Specifications

• Manufacturer: SKF
• Part Number: H 2313
• Part Type: Adapter Sleeve
• Dimensions:
  • Shaft Diameter (d): 60 mm
  • Outside Diameter (D): 85 mm
  • Sleeve Width (B): 65 mm
• Required Accessories: KM13 Locknut, MB13 Lock Washer
• Weight: 0.52 kg
• Also Known As: H2313, 60 mm Shaft Sleeve, Tapered Bore Adapter

—

Key Features & Benefits

• Universal Mounting: Allows bearings with a tapered bore to be mounted on a standard cylindrical shaft.
• Secure Locking: When used with the correct locknut and lock washer, it provides a strong and reliable friction fit.
• Simplified Installation: The standardized design and simple components make for a straightforward and efficient mounting process.
• Interchangeable: The H 2313 designation is standardized, allowing for easy interchangeability with products from other major manufacturers.
