SKF 32024 X – 120 mm Tapered Roller Bearing

SKF 32024 X – 120 mm Tapered Roller Bearing

The SKF 32024 X is a high-performance single-row tapered roller bearing engineered to handle very high radial and axial loads. Its separable design simplifies mounting and dismounting, while the “X” suffix indicates that its external dimensions conform to international standards, ensuring compatibility across various applications. This bearing is a robust and reliable choice for a wide range of industrial machinery, from gearboxes to automotive hubs.

—

Quick Navigation

• About This Bearing
• Technical Specifications
• Key Features & Benefits

—

About This Bearing

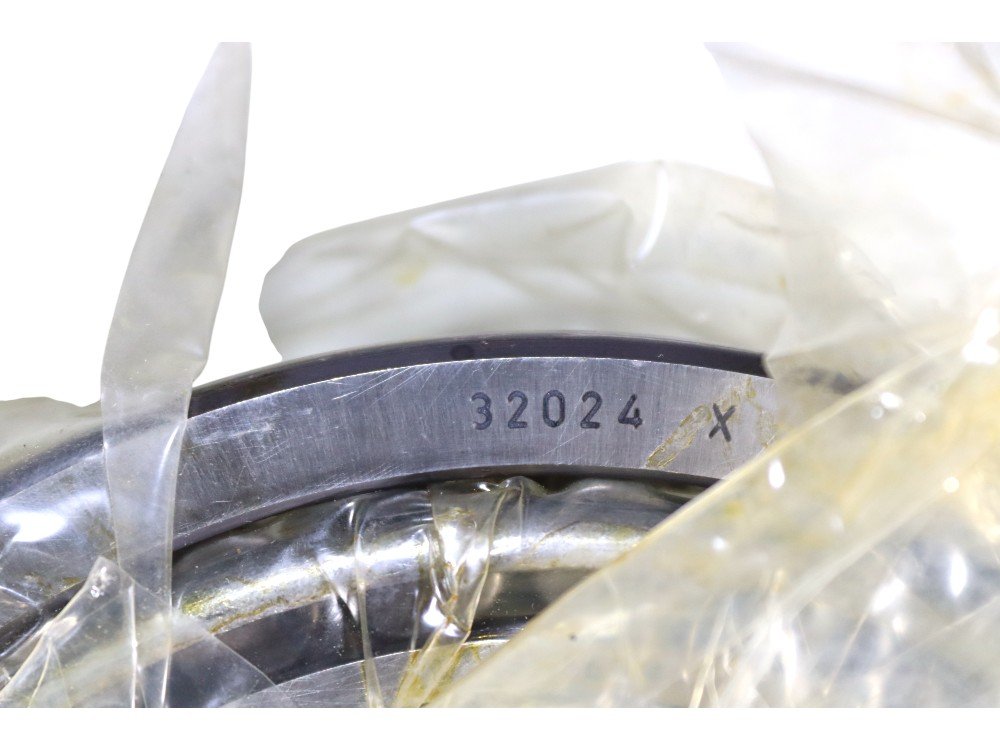

This product is a tapered roller bearing, distinguished by its conical inner and outer rings, and conical rollers. This design allows it to support both heavy radial loads and significant axial loads in a single direction. The 32024 X part number provides key information: the “320” designates the specific dimension series, and the “24” indicates a 120 mm bore (24 x 5). The X suffix is important, as it confirms that the bearing’s external dimensions are optimized and standardized to an international design. The bearing’s separable design, with the inner ring and roller assembly (cone) separate from the outer ring (cup), simplifies the mounting and dismounting process.

—

Technical Specifications

• Manufacturer: SKF
• Part Number: 32024 X
• Bearing Type: Tapered Roller Bearing
• Dimensions:
  • Bore Diameter (d): 120 mm
  • Outer Diameter (D): 180 mm
  • Total Width (T): 38 mm
• Dynamic Load Rating (C): 299 kN
• Static Load Rating (C0): 415 kN
• Limiting Speed: 3,400 r/min
• Weight: 3.29 kg
• Also Known As: 32024X, 120x180x38 mm Bearing

—

Key Features & Benefits

• High Load Capacity: Designed to carry a combination of heavy radial and axial loads.
• Standardized Dimensions: The “X” suffix ensures the bearing conforms to international standards, providing interchangeability with other brands.
• Separable Design: The two-part construction (cup and cone) simplifies mounting and dismounting, which facilitates maintenance and replacement.
• Durable Construction: The robust tapered roller design ensures a long and reliable service life in high-stress environments.
