KEM ZHM 04 KL.E.V. – Gear Flow Meter 0.5-70 l/min

KEM ZHM 04 KL.E.V. – Gear Flow Meter 0.5-70 l/min

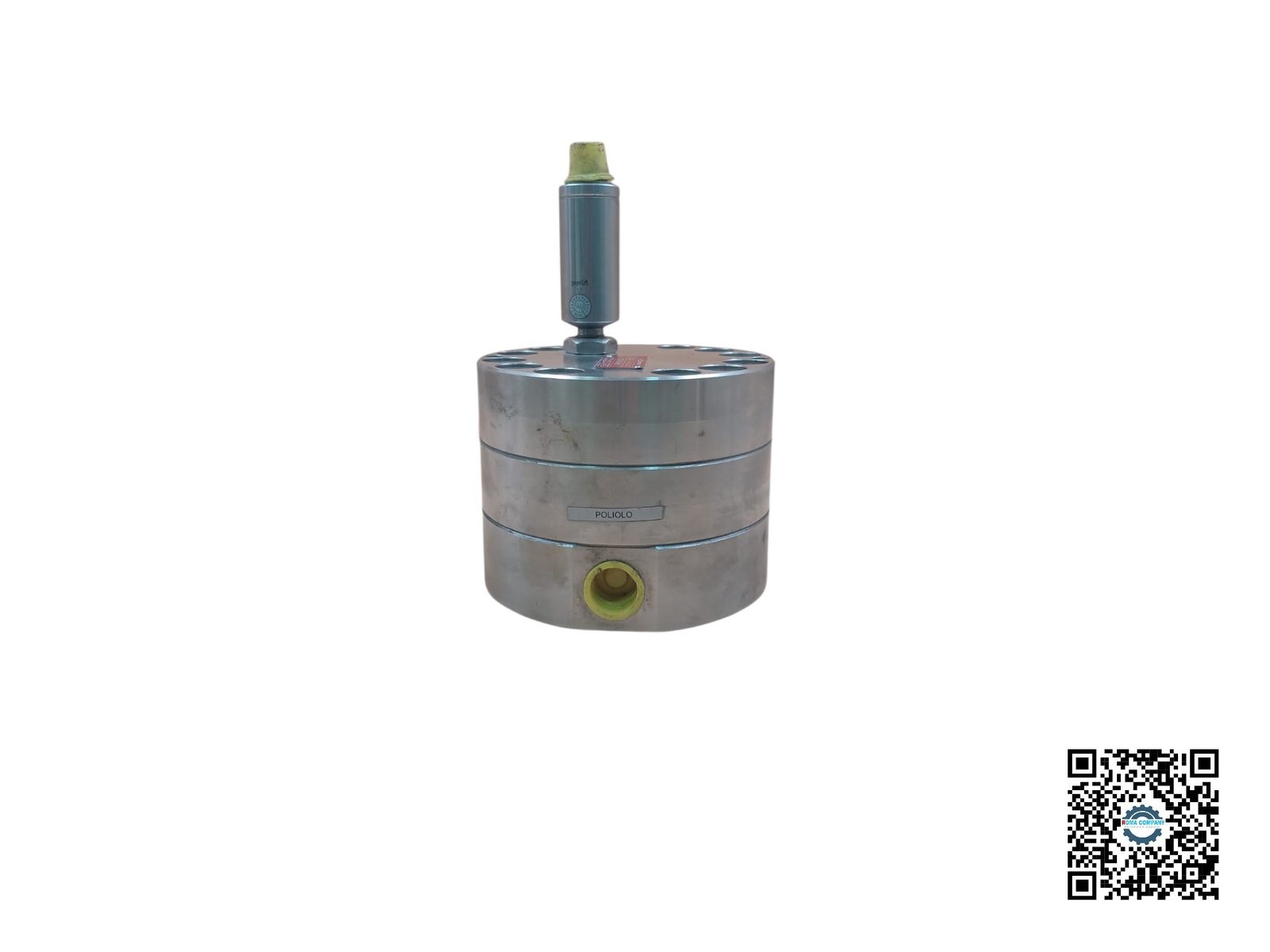

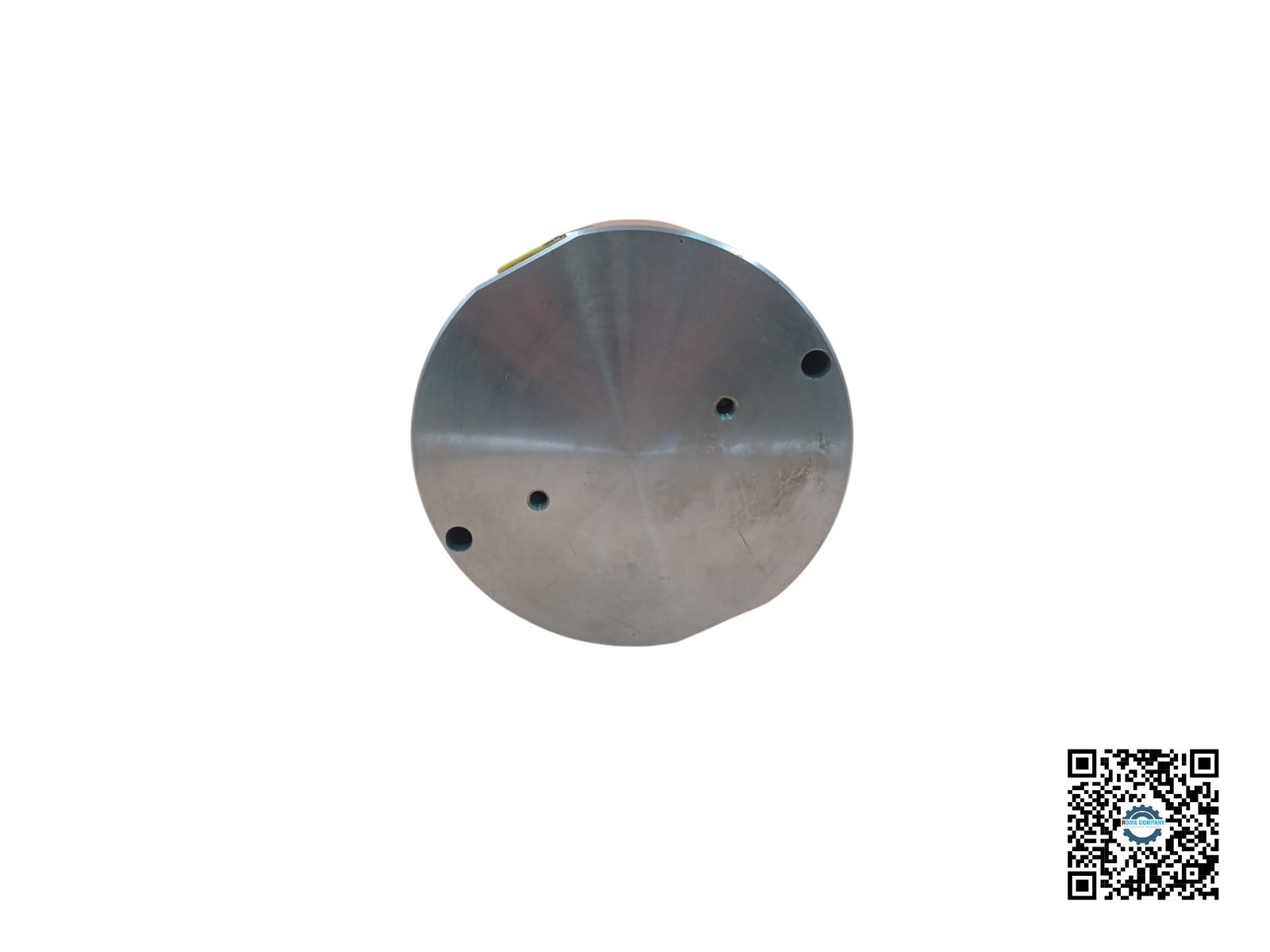

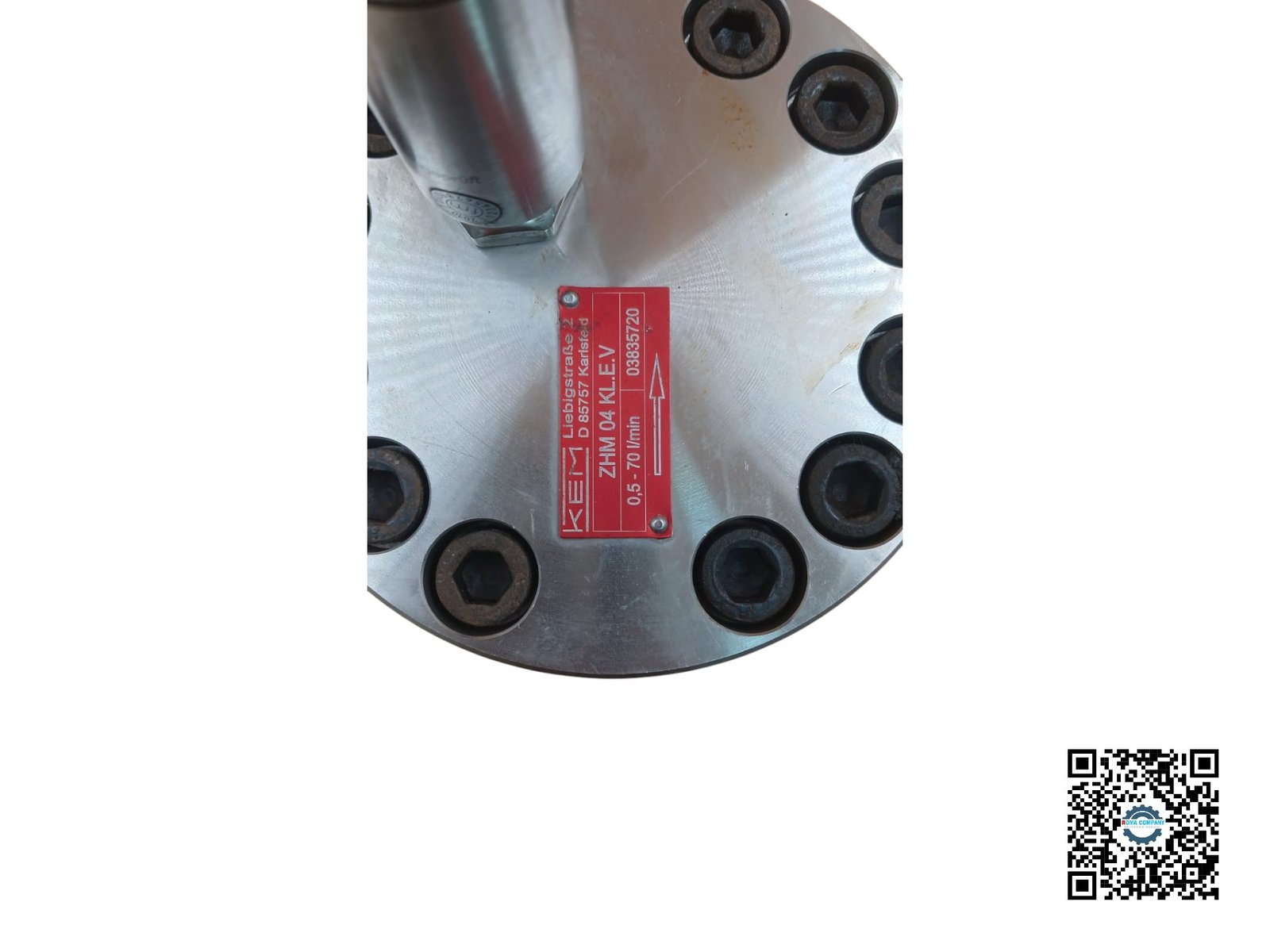

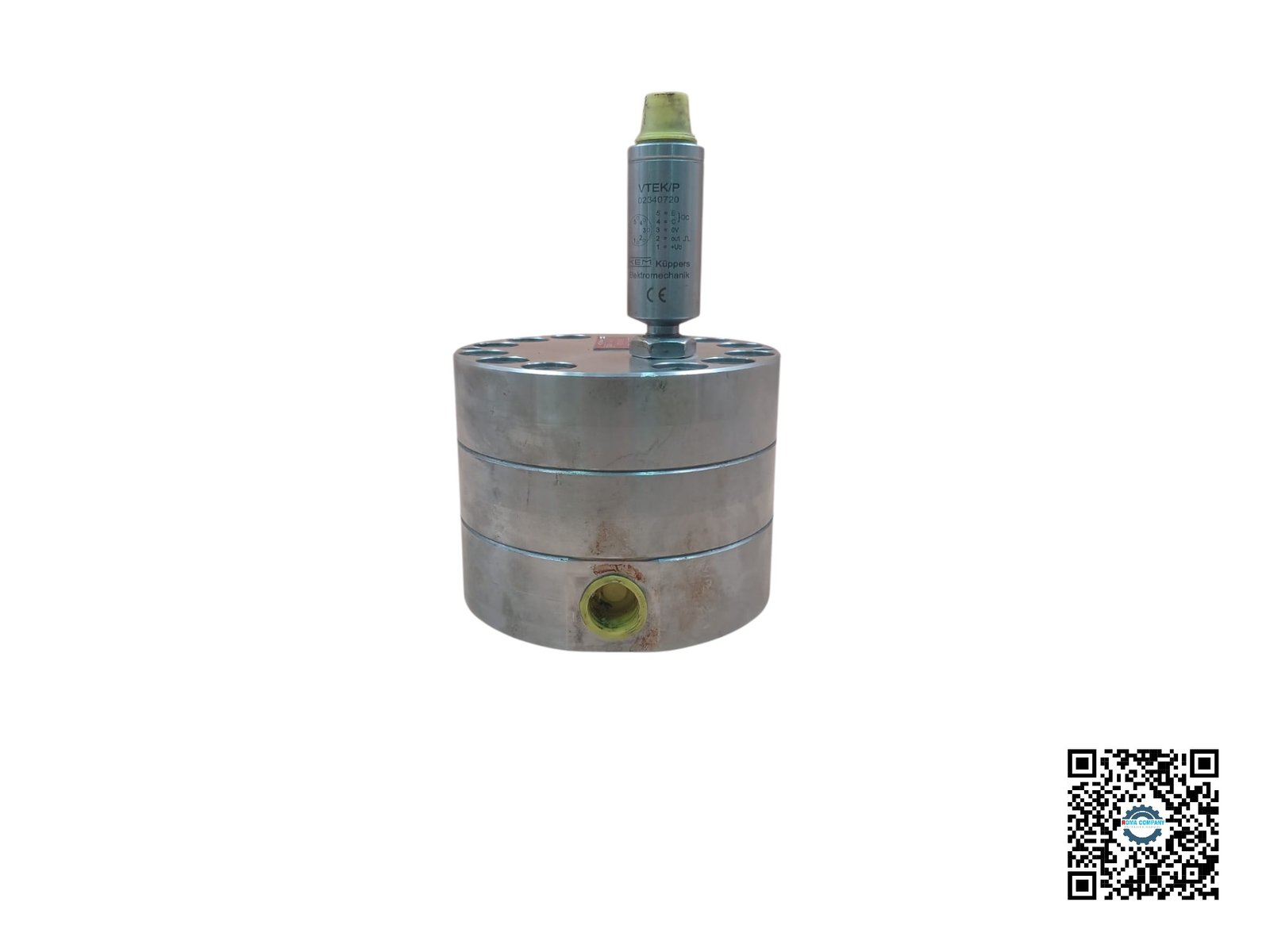

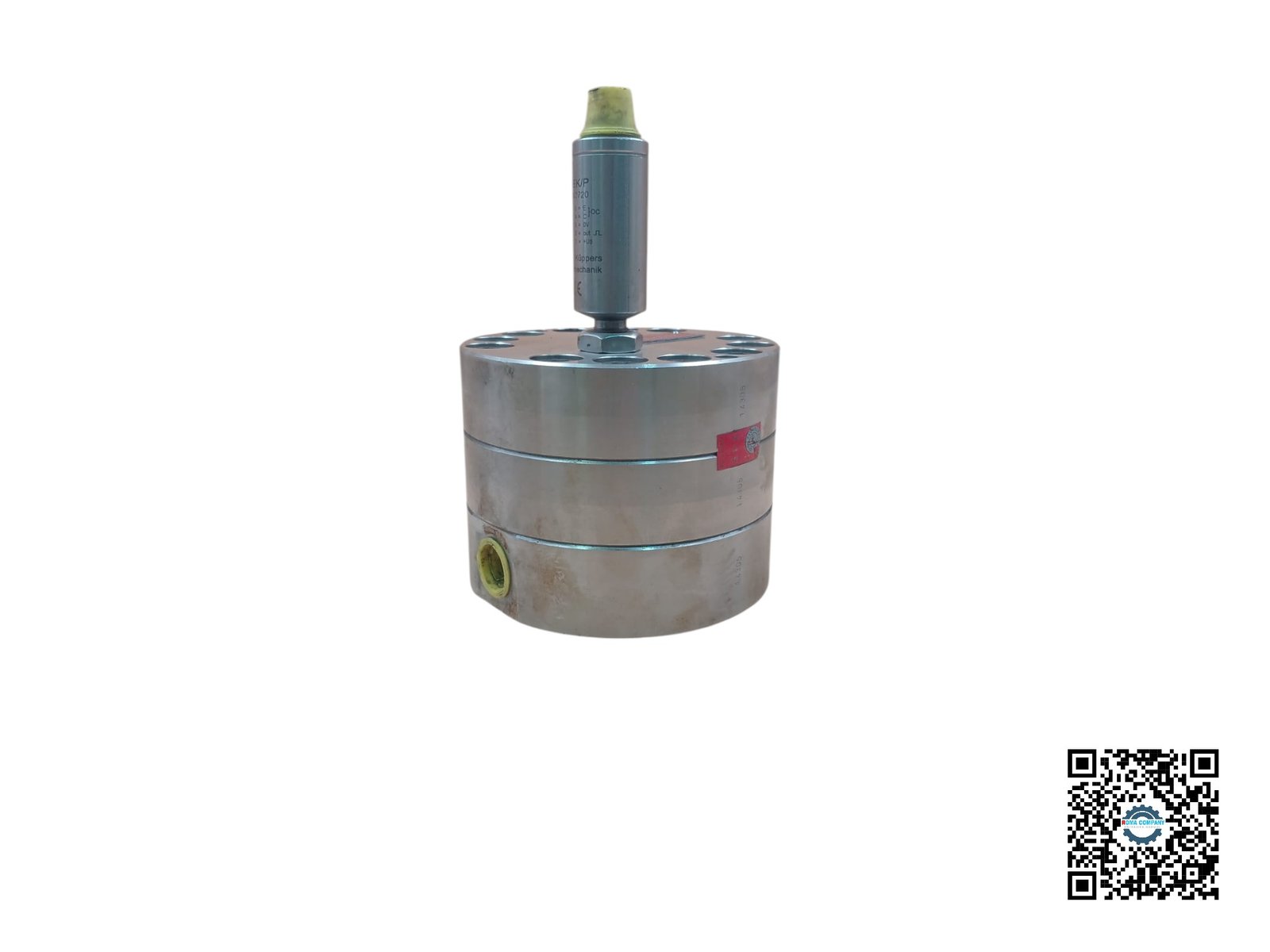

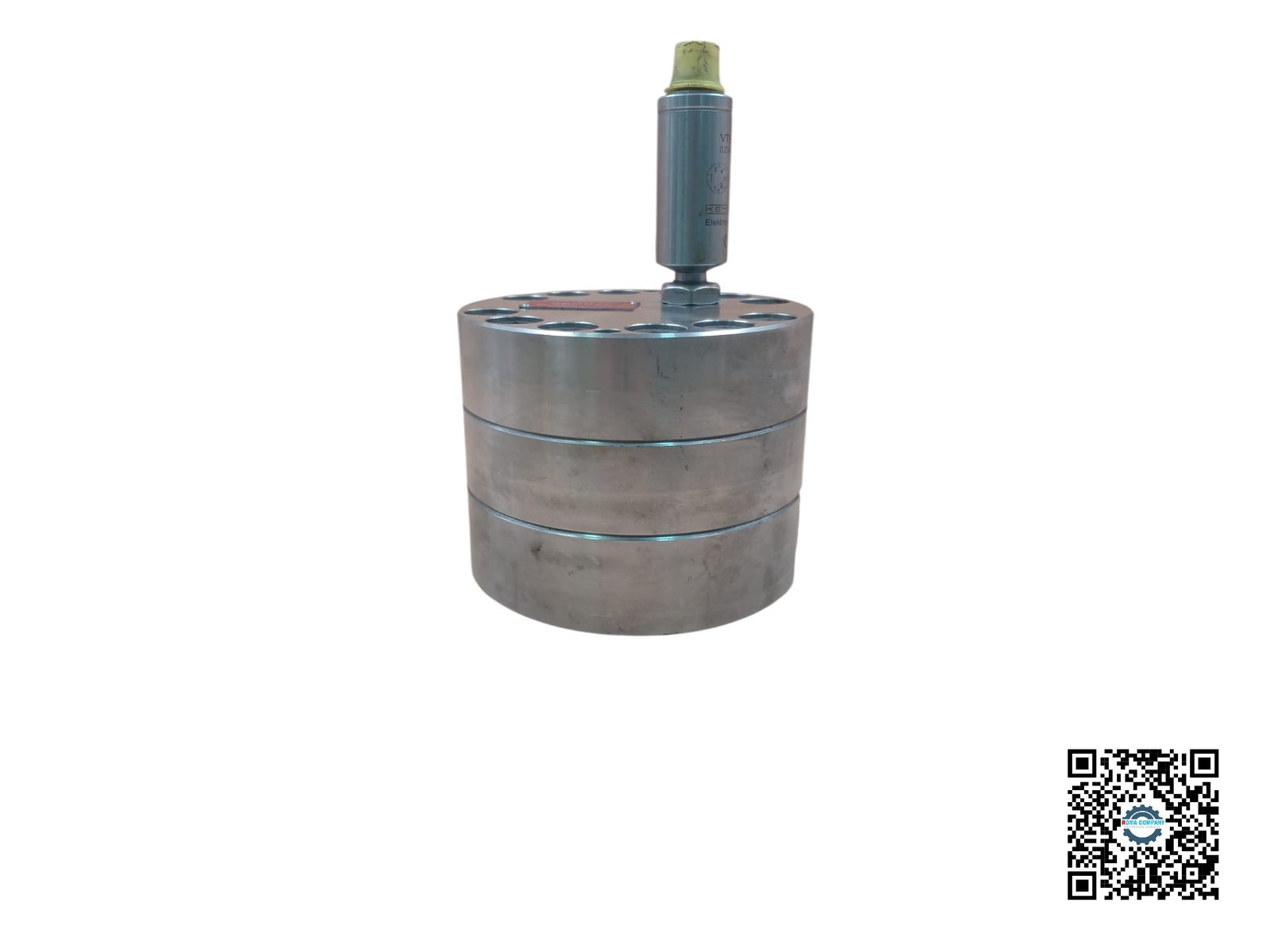

The KEM ZHM 04 KL.E.V. is a high-precision **gear flow meter** designed for the accurate measurement of lubricating and non-abrasive liquids. This flow meter is a type of positive displacement meter, which provides a high degree of accuracy and repeatability. With a wide flow rate range of 0.5 to 70 l/min and a pressure rating of up to 420 bar, this meter is a reliable and robust solution for demanding industrial applications. The Viton seals ensure compatibility with a wide range of fluids.

Quick Navigation

• Key Features
• Measuring Principle
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• Positive Displacement Meter: Provides highly accurate and repeatable flow measurement.
• Wide Flow Rate Range: Capable of measuring flow from 0.5 to 70 l/min, suitable for various applications.
• High Accuracy: The typical accuracy for this model is excellent, up to ±0.1% of the measured value.
• High Pressure Rating: Built to withstand high pressures, rated for up to 420 bar.
• Viton Seals: The seals are made from Viton, a durable material that is compatible with a wide range of liquids and temperatures.

Measuring Principle

This is a gear flow meter, which is a type of positive displacement meter. It uses two precisely machined, interlocking gears that rotate as liquid flows through them. Each rotation of the gears displaces a known volume of fluid, making the device highly accurate. The gear rotation is detected by a non-intrusive sensor (pickup), which generates a series of electrical pulses. The frequency of these pulses is directly proportional to the flow rate.

Technical Specifications

• Manufacturer: KEM Küppers Elektromechanik GmbH
• Part Number: ZHM 04 KL.E.V.
• Product Type: Gear Flow Meter
• Flow Rate Range: 0.5 to 70 l/min
• Accuracy: ±0.1%
• Repeatability: ±0.05%
• Pressure Rating: 420 bar
• Temperature Range: -40°C to +180°C
• Seals: Viton

Applications

The KEM ZHM 04 KL.E.V. is a fundamental component in many fluid control systems for precise flow measurement, including:

• Hydraulic Fluid and Oil Measurement
• Automotive and Industrial Lubrication Systems
• Fuel and Chemical Dispensing
• Process Control and Automation
