HERION 80207 50 – 220V AC 3/2-Way Single Solenoid Valve

HERION 80207 50 – 3/2-Way Single Solenoid Valve

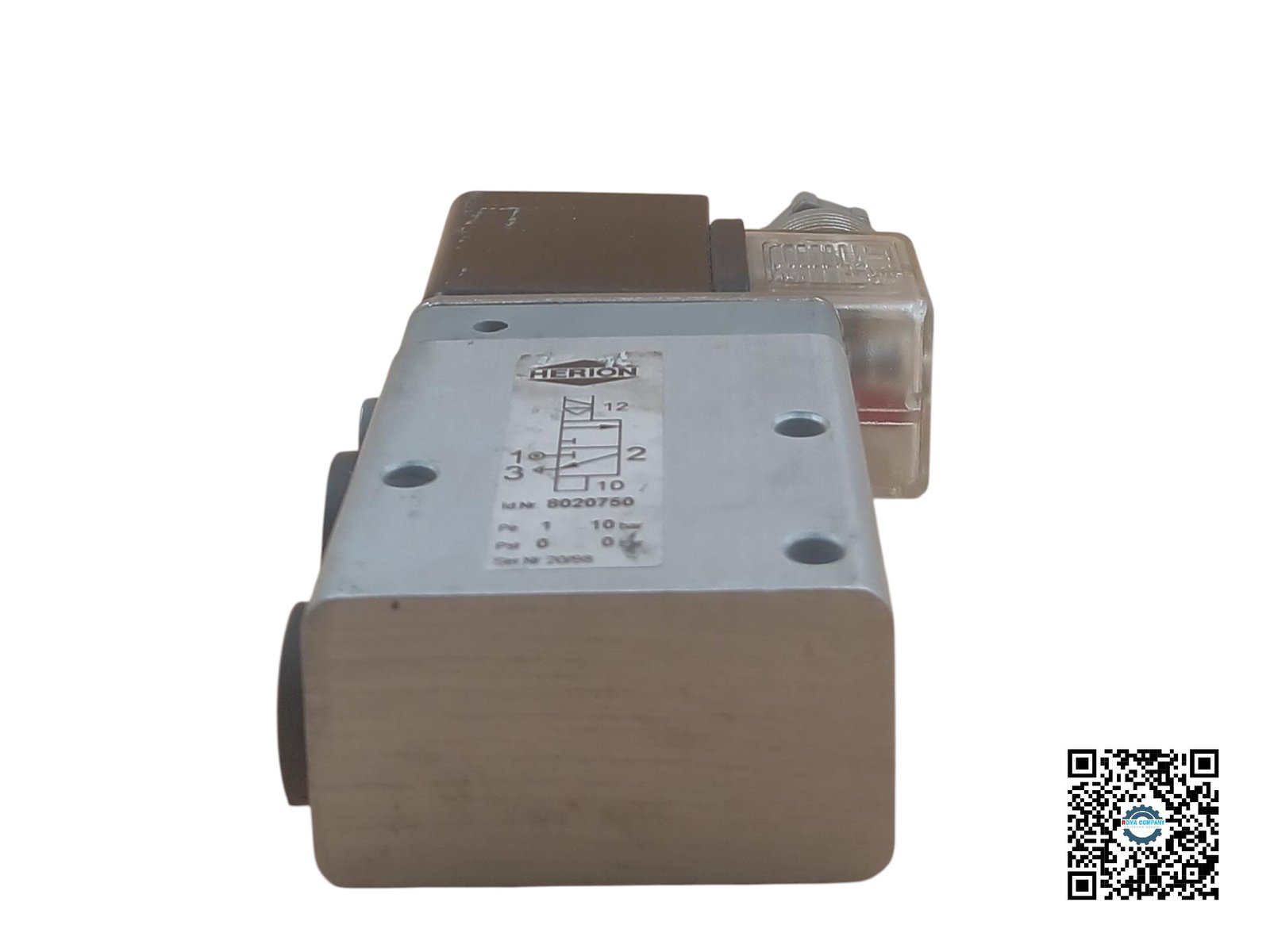

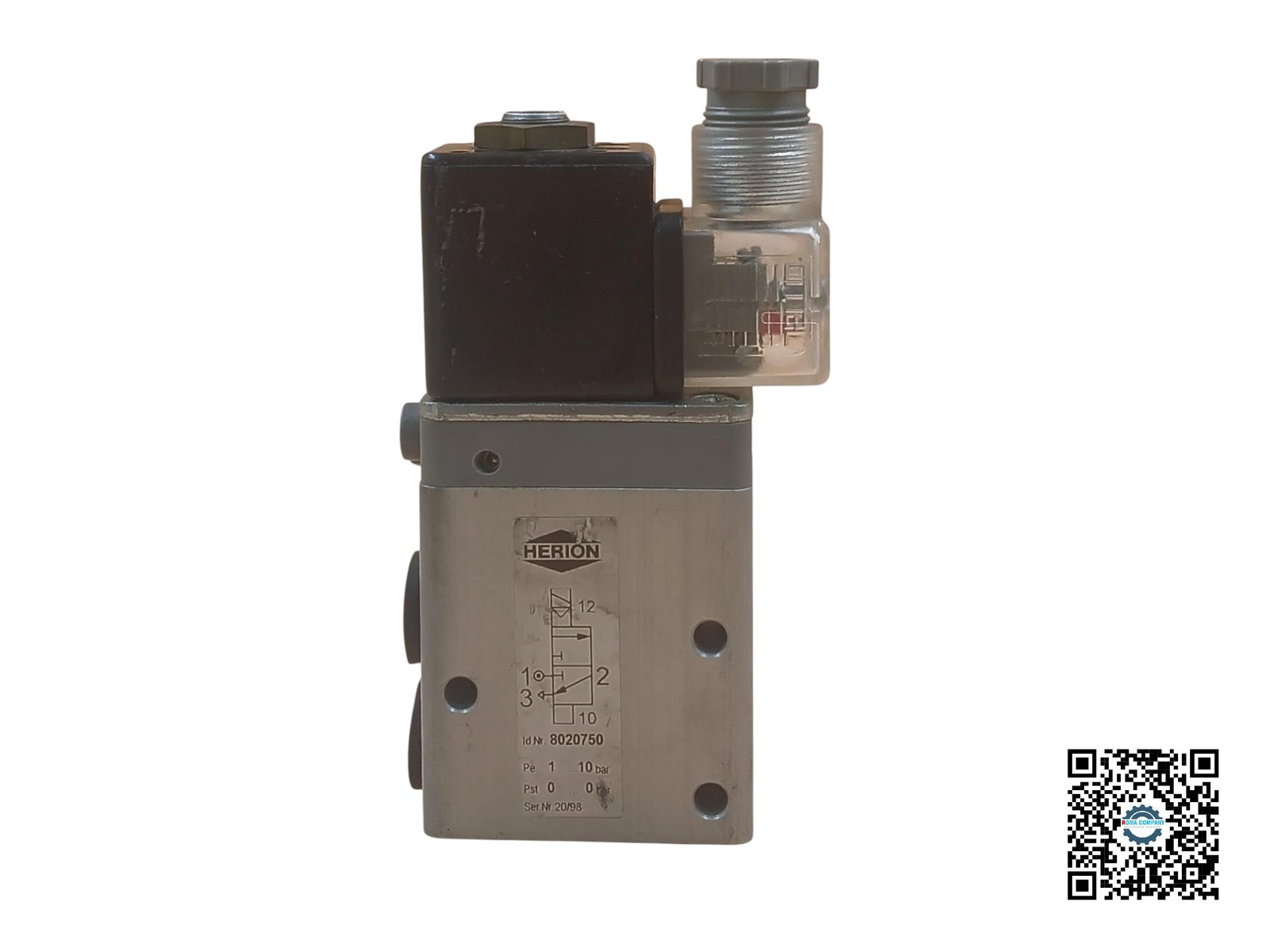

The HERION 80207 50 is a high-performance 3/2-way single solenoid valve with a spring return, designed for the precise control of compressed air flow. This valve is rated for a working pressure of 1 to 10 bar, and the diagram on the label indicates it is a 3/2-way valve, which is typically used for controlling single-acting pneumatic cylinders. It has a spring return mechanism, ensuring it returns to a default, “normally closed” position when the electrical signal is removed.

Quick Navigation

• Key Features
• About this Valve Function
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• 3/2-Way Function: The valve has three ports and two positions, which is the standard configuration for controlling single-acting pneumatic cylinders.
• Single-Solenoid Actuation: The valve is shifted by a single solenoid and returns to its default position via a spring.
• Wide Pressure Range: Capable of operating with a working pressure from 1 to 10 bar, ensuring versatility.
• Solenoid Pilot Operation: The valve uses an attached solenoid to actuate a pilot signal, which in turn shifts the main spool.
• Made in Germany: Manufactured to high standards for quality and performance.

About this Valve Function

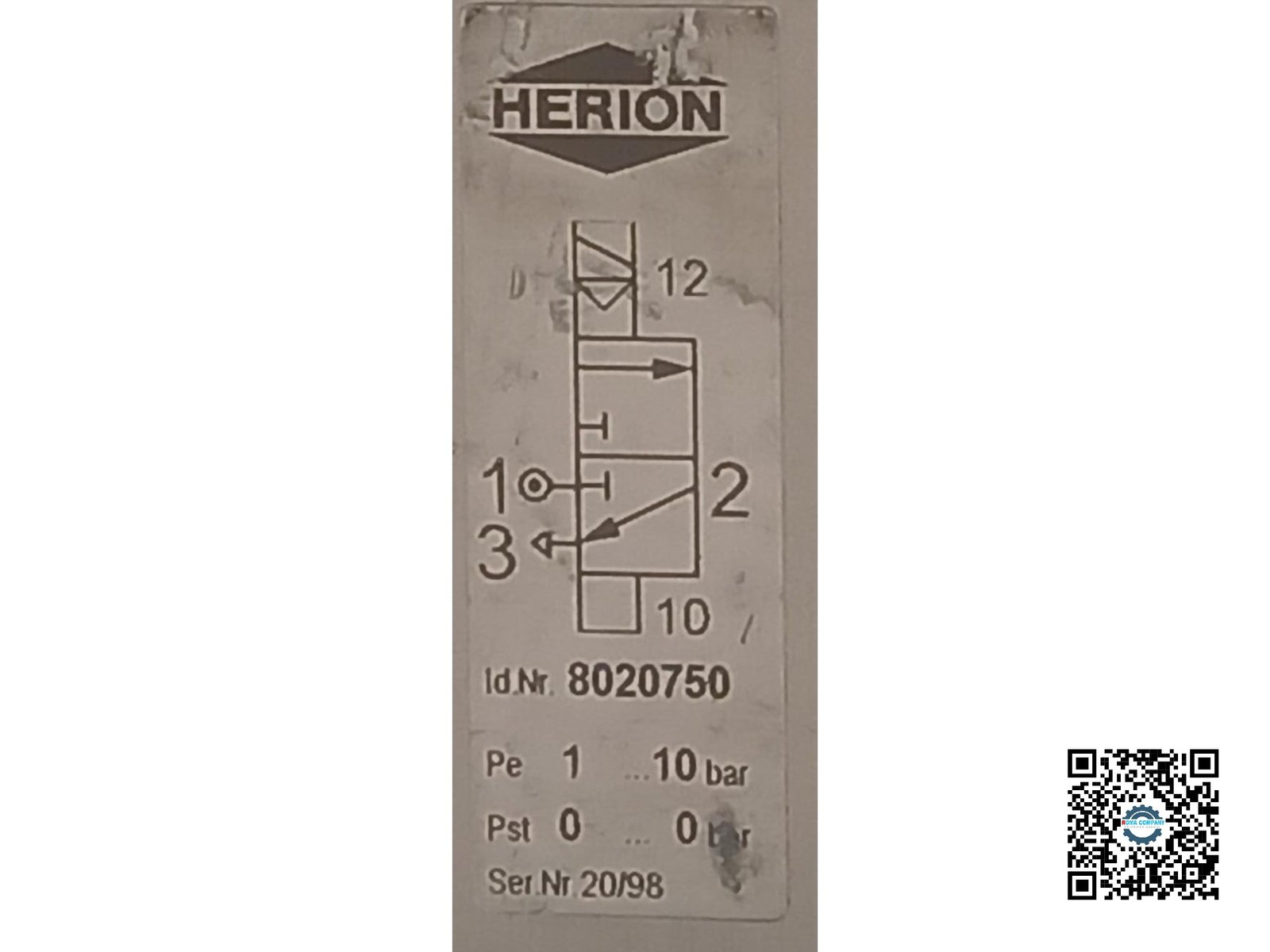

The diagram on the label identifies it as a 3/2-way valve. This means it has three ports (a pressure inlet, an exhaust, and a work port) and two positions. Its primary function is to control a single-acting pneumatic cylinder. When the solenoid is energized, the valve shifts to allow air to flow to the cylinder, extending the piston. When power is removed, a spring returns the valve to its original, normally-closed position, venting air from the cylinder and allowing it to retract.

Technical Specifications

• Manufacturer: HERION
• Part Number: 80207 50
• Product Type: Solenoid Valve
• Function: 3/2-way, NC
• Working Pressure: 1-10 bar
• Operating Method: Solenoid
• Voltage: 220V AC
• Connection: G 1/4
• Solenoid Count: Single Solenoid

Applications

This HERION solenoid valve is a fundamental component in many pneumatic control systems for controlling actuators, including:

• Pneumatic Cylinder Control
• Machine and Assembly Automation
• Material Handling Equipment
• Robotics and Automation
