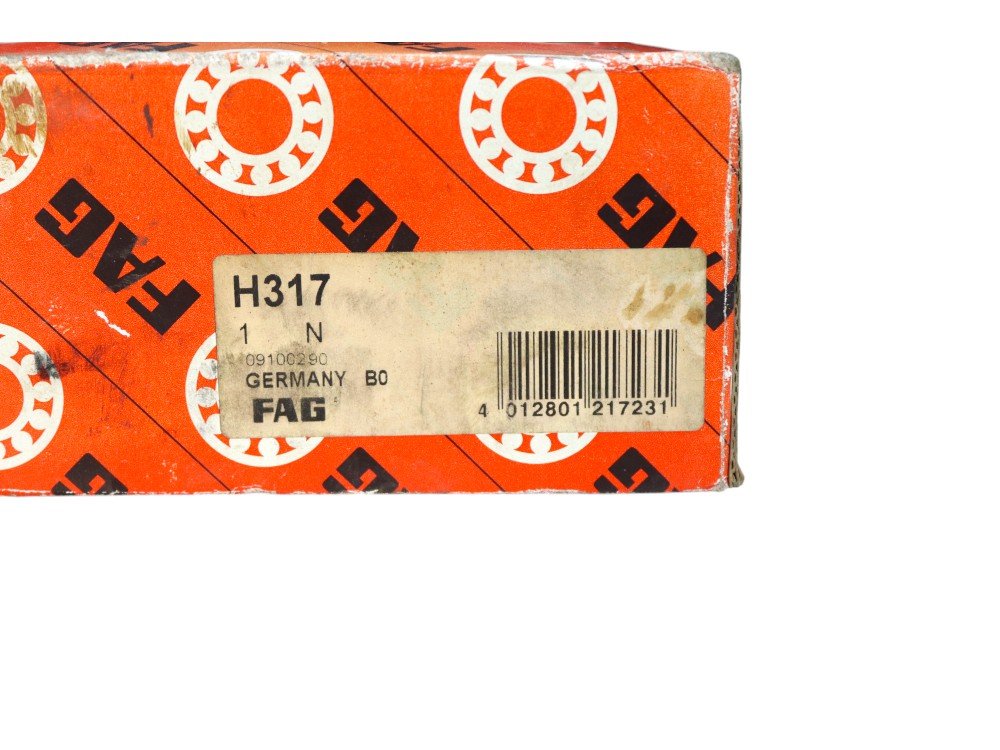

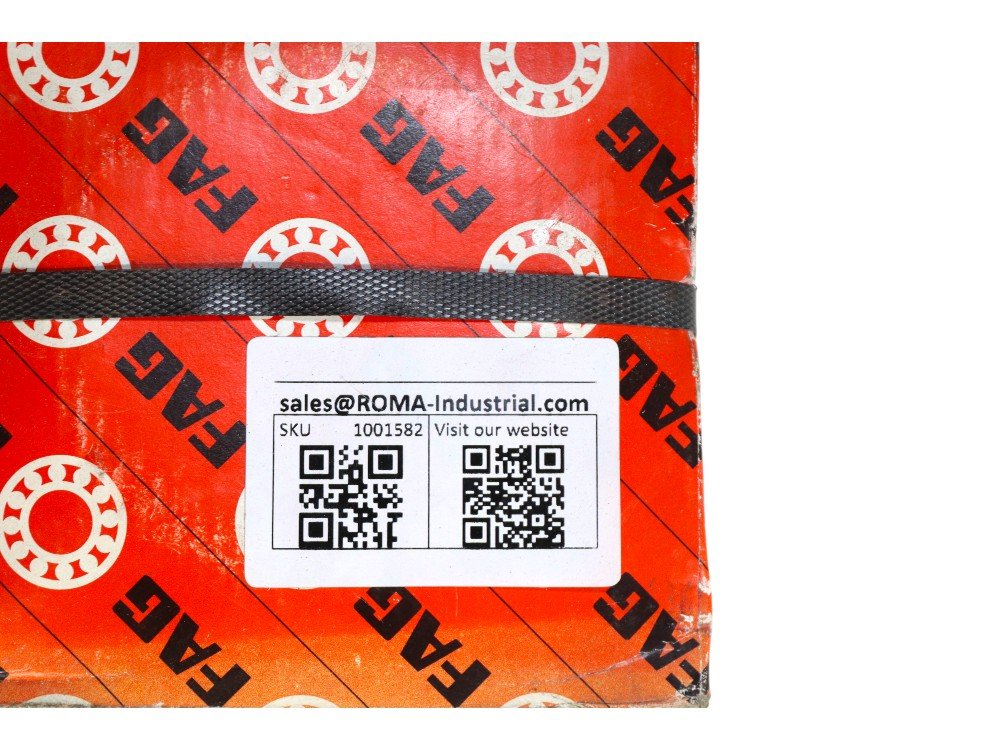

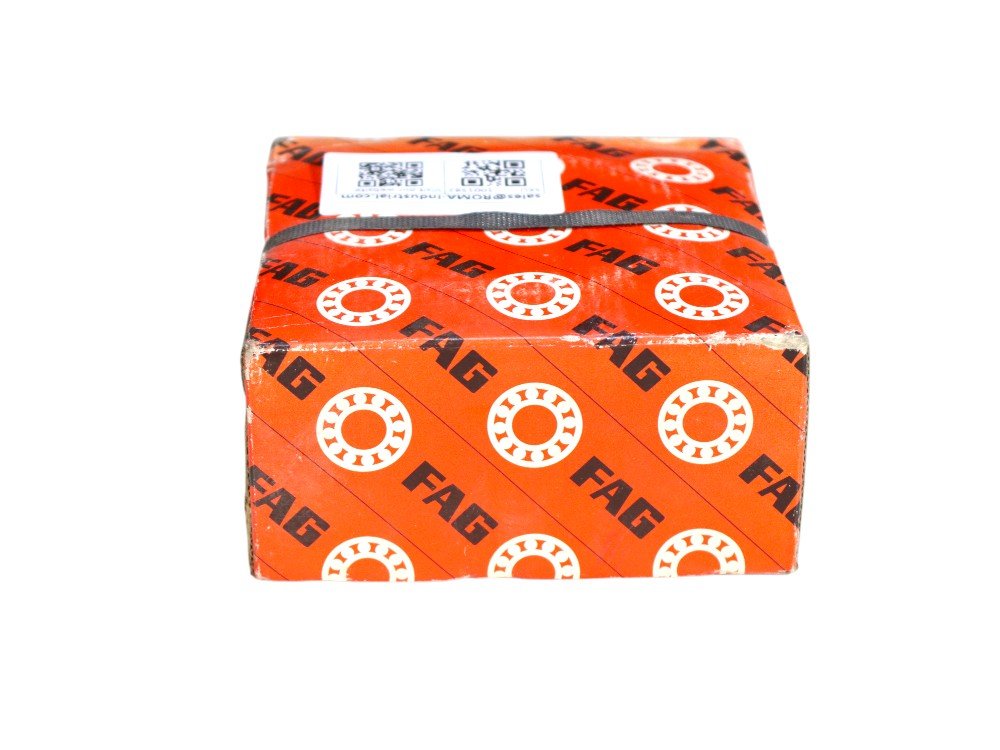

FAG H317 – 75 mm Adapter Sleeve

FAG H317 – 75 mm Adapter Sleeve

The FAG H317 is a precision-engineered adapter sleeve designed for mounting bearings with a tapered bore onto a cylindrical shaft. It is a crucial accessory that simplifies the installation process, eliminating the need for a specially machined shaft. This standardized component, which includes a lock nut and lock washer, ensures a secure and precise fit for the bearing, preventing axial movement and ensuring reliable performance.

—

Quick Navigation

• About This Adapter Sleeve
• Technical Specifications
• Key Features & Benefits

—

About This Adapter Sleeve

This product is an adapter sleeve, which acts as an interface between a cylindrical shaft and a bearing with a tapered bore. The H317 designation is a standardized part number, meaning its dimensions are consistent across major manufacturers. The sleeve is mounted by first sliding it onto the shaft. The tapered-bore bearing is then pushed onto the sleeve, and a locknut (KM17) is used to force the bearing up the tapered surface until the correct fit is achieved. This process creates a secure friction fit. The assembly is then locked in place with a lock washer (MB17). This method is a simple and effective way to mount bearings that would otherwise require a stepped or precision-machined shaft.

—

Technical Specifications

• Manufacturer: FAG (part of the Schaeffler Group)
• Part Number: H317
• Part Type: Adapter Sleeve
• Dimensions:
  • Inner Diameter (d): 75 mm
  • Outer Diameter (tapered): 85 mm
  • Sleeve Length (L): 63 mm
• Required Accessories: KM17 Locknut, MB17 Lock Washer
• Weight: 1.15 kg
• Also Known As: H 317, Adapter Sleeve H317, 75 mm Shaft Sleeve

—

Key Features & Benefits

• Universal Mounting: Allows bearings with a tapered bore to be mounted on a standard cylindrical shaft.
• Secure Locking: When used with the correct locknut and lock washer, it provides a strong and reliable friction fit.
• Simplified Installation: The standardized design and simple components make for a straightforward and efficient mounting process.
• Interchangeable: The H317 designation is standardized, allowing for easy interchangeability with products from other major manufacturers.
