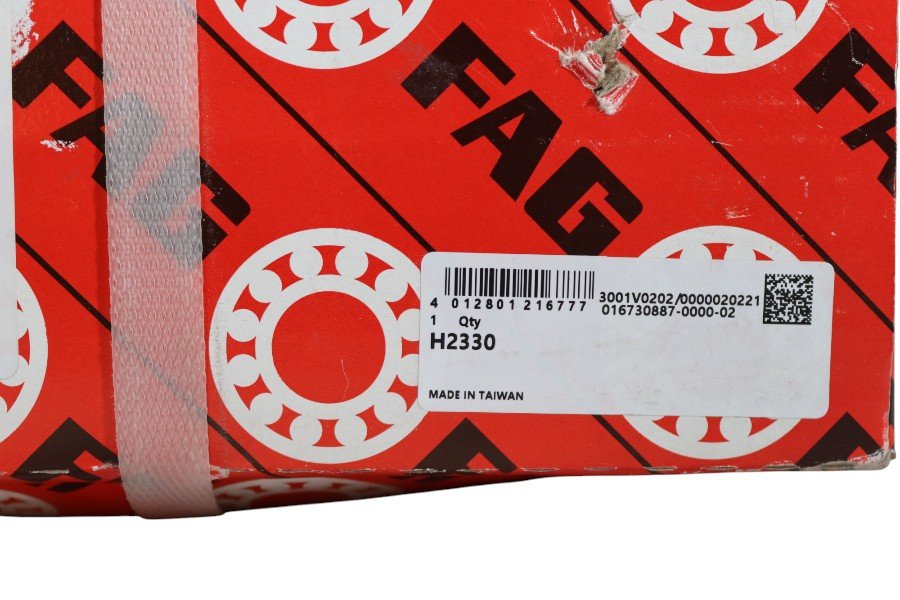

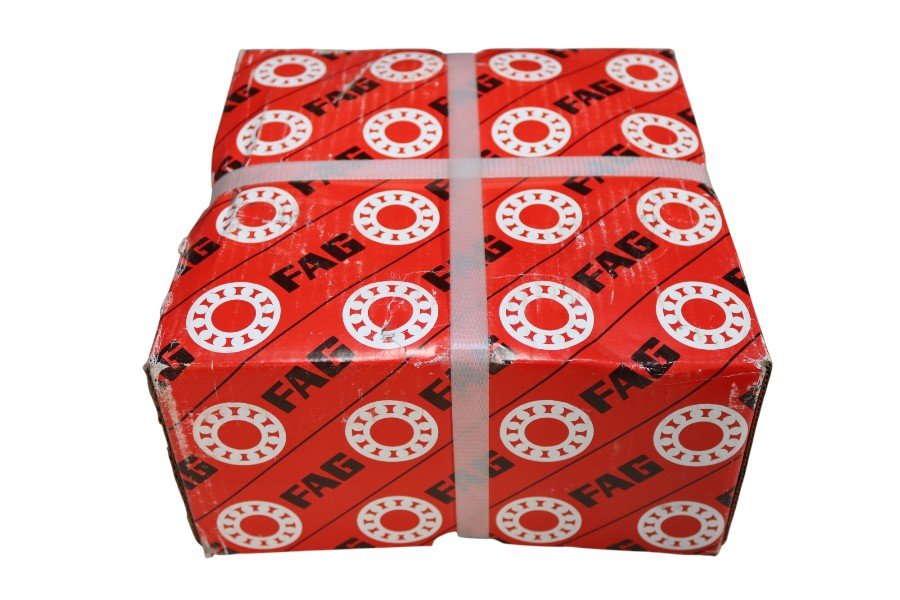

FAG H2330 – 135 mm Adapter Sleeve

FAG H2330 – 135 mm Adapter Sleeve

The FAG H2330 is an adapter sleeve designed to mount bearings with a tapered bore onto a cylindrical shaft. This crucial accessory is used to provide a secure and simple method for fitting spherical roller bearings and other tapered-bore bearings on shafts that do not have a corresponding taper. The sleeve’s tapered shape allows the bearing to be seated firmly on the shaft when the lock nut is tightened, ensuring a stable and long-lasting fit in various industrial applications.

—

Quick Navigation

• About This Adapter Sleeve
• Applications
• Why ROMA Industrial Company
• Technical Specifications
• Key Features & Benefits

—

About This Adapter Sleeve

This product is an adapter sleeve, which is a key component for mounting bearings with a tapered bore onto a cylindrical shaft. The H2330 designation indicates its specific dimensions, designed to fit a shaft with a diameter of 135 mm. The sleeve works by being slid onto the shaft, and as the bearing is pushed up its tapered surface, the sleeve tightens and secures the bearing in place. This method creates a strong and reliable friction fit without the need for a precision-machined shaft with a step or shoulder. It is a fundamental accessory for reliably positioning bearings that lack a taper.

—

Applications

This adapter sleeve is suitable for mounting bearings in a variety of industrial applications, including:

• Conveyor Systems
• Material Handling Equipment
• Industrial Fans
• Pumps and Compressors
• General Industrial Machinery

—

Why ROMA Industrial Company

ROMA Industrial is your trusted partner for a full range of industrial supplies across categories like Motion Control & Mechatronics, Electrical & Automation, and Fluid Power & Control. We are committed to providing top-tier products and service to keep your operations running smoothly. We partner with world-class shipping providers like FedEx, DHL, and UPS to ensure fast and reliable delivery worldwide. We accept returns to fulfill your satisfaction and accept variable payments methods including PayPal, credit cards, and more. We are a supplier in Europe, USA, and Saudi Arabia.

—

Technical Specifications

• Manufacturer: FAG (part of the Schaeffler Group)
• Part Number: H2330
• Part Type: Adapter Sleeve
• Dimensions:
  • Shaft Diameter: 135 mm
  • Inner Diameter (d): 135 mm
  • Outer Diameter (d₃): 195 mm
  • Overall Width (B): 139 mm
• Matching Bearing (nominal): 22330, 23030, 23130, 23230
• Material: Steel
• Taper: 1:12
• Required Locknut: KM30
• Required Lock Washer: MB30
• Weight: 6.64 kg

—

Key Features & Benefits

• Secure Mounting: Provides a reliable and strong friction fit for bearings with a tapered bore.
• Simplified Installation: The sleeve simplifies the mounting process, making it an efficient solution for a variety of shafts.
• Durable Material: Made from steel for robust and long-lasting performance.
• Versatile Use: Compatible with a wide range of popular tapered-bore bearings.
