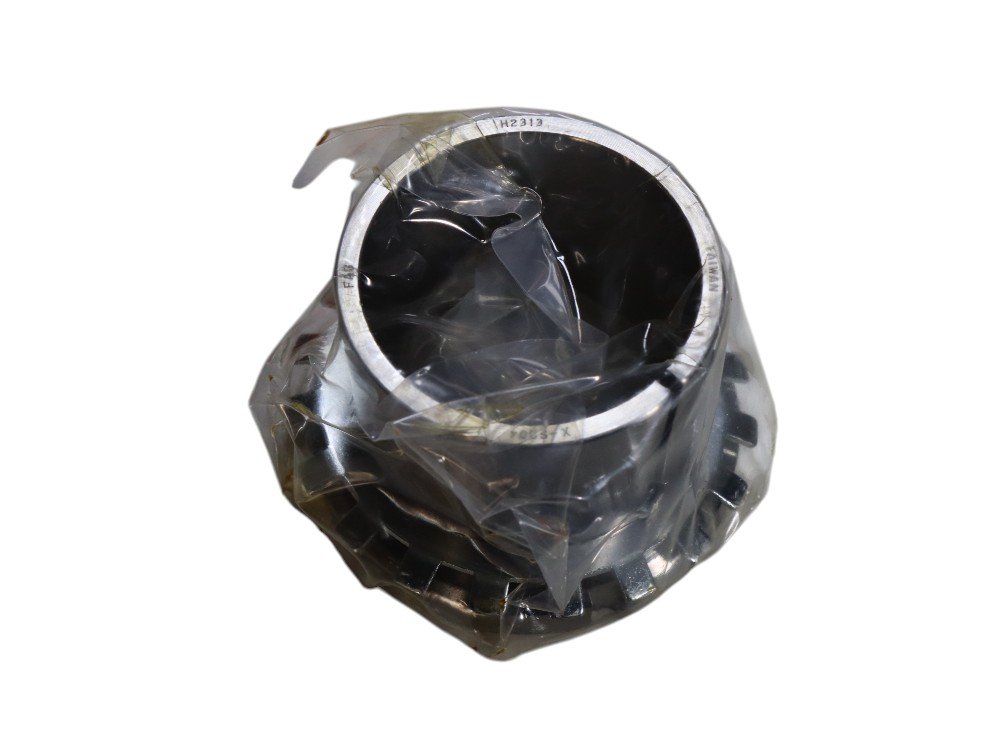

FAG H2313 – Withdrawal Sleeve for 65 mm Shafts

FAG H2313 – Withdrawal Sleeve for 65 mm Shafts

The FAG H2313 is a precision-engineered withdrawal sleeve designed to facilitate the secure mounting and easy dismounting of tapered-bore bearings on a cylindrical shaft. It acts as an adapter, allowing bearings like spherical roller bearings to be precisely positioned and locked into place. With its M65x2 thread and a design that simplifies the fitting process, this sleeve is an essential accessory for ensuring the correct and safe installation of bearings in various industrial applications.

—

Quick Navigation

• About This Withdrawal Sleeve
• Technical Specifications
• Key Features & Benefits

—

About This Withdrawal Sleeve

This product is a withdrawal sleeve, a crucial accessory for mounting and dismounting bearings with a tapered bore onto a cylindrical shaft. The H2313 designation indicates its specific dimensions and compatibility. The sleeve is first mounted onto the shaft, and then the bearing is pushed up the tapered outer surface. This process creates a tight, secure fit that locks the bearing in place. The sleeve’s external M65x2 thread is a key feature for dismounting; a locknut and puller tool are used to pull the sleeve out from the bearing’s bore, releasing the tight fit and allowing the bearing to be easily removed without causing damage. This simple yet effective method provides a reliable solution for mounting and dismounting operations.

—

Technical Specifications

• Manufacturer: FAG (part of the Schaeffler Group)
• Part Number: H2313
• Product Type: Withdrawal Sleeve
• Intended Shaft Diameter: 65 mm
• Outside Diameter (Taper): 75 mm
• Thread Size: M65x2
• Recommended Bearing Bore: 65 mm
• Weight: N/A
• Also Known As: Withdrawal Sleeve H2313, H-2313, 65mm Taper Sleeve

—

Key Features & Benefits

• Simplified Mounting: Allows for easy and precise positioning of tapered-bore bearings on a straight shaft.
• Damage-Free Dismounting: The threaded design facilitates the quick and safe removal of bearings, preventing damage to the shaft or bearing.
• Secure Fit: Provides a rigid and reliable seating for bearings, ensuring stability and correct operation.
• Versatile Application: Suitable for use with various tapered-bore bearings, including spherical roller and CARB bearings.
