Allen-Bradley VPL-B1153F-CJ12AA – 6.55 Nm Servo Motor

Allen-Bradley VPL-B1153F-CJ12AA – 6.55 Nm Servo Motor

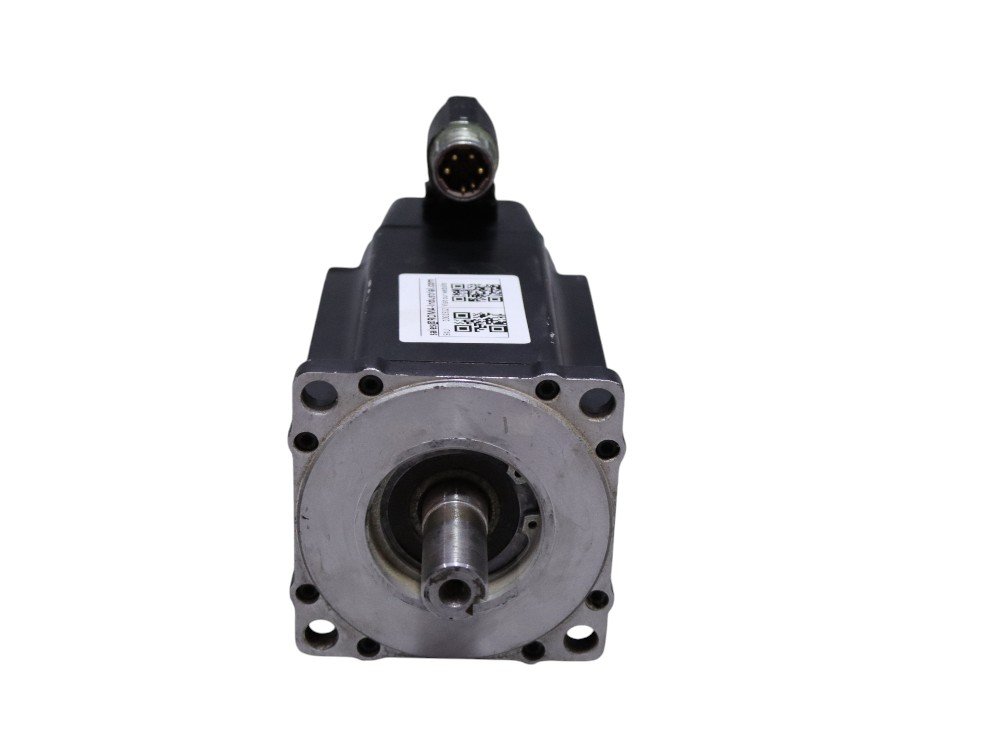

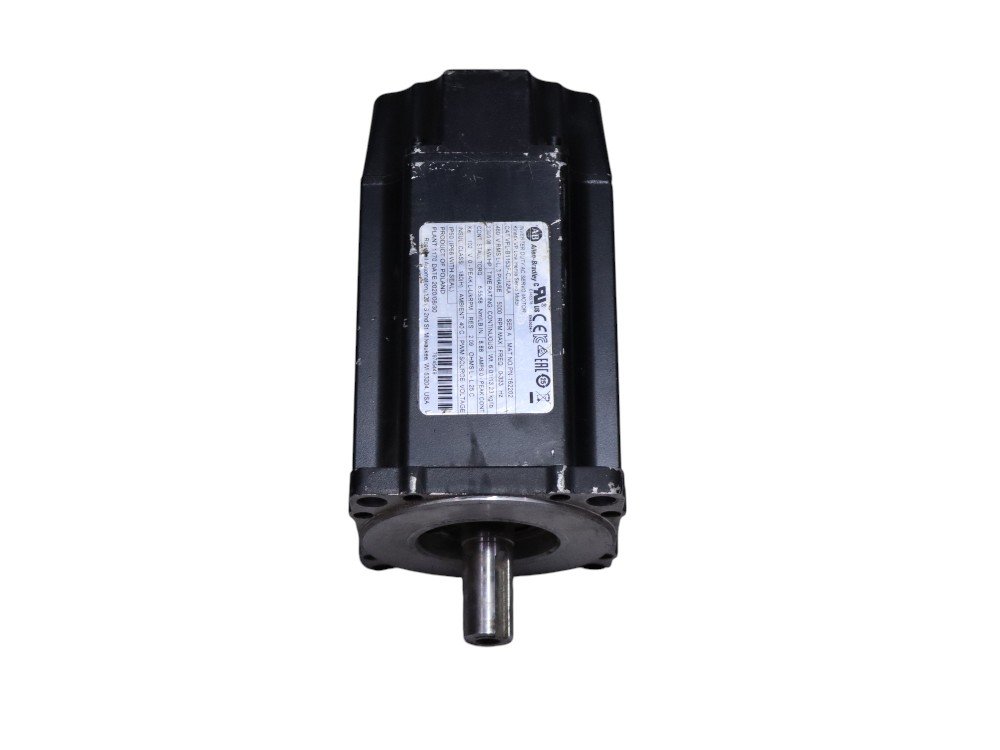

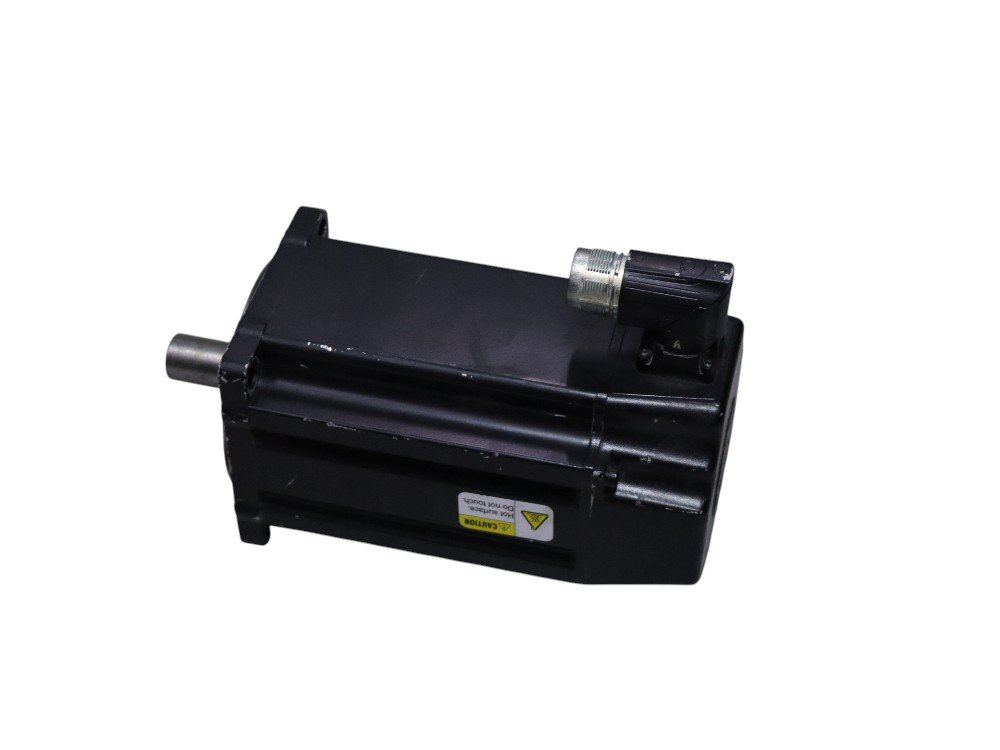

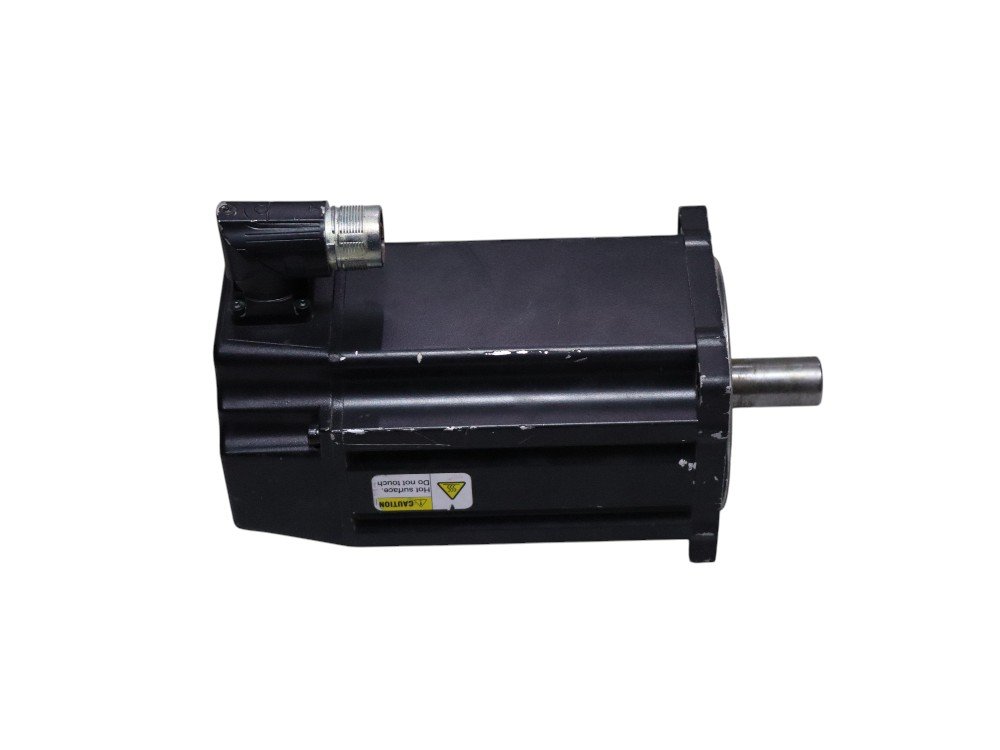

The Allen-Bradley VPL-B1153F-CJ12AA is a high-performance Kinetix Low Inertia Servo Motor designed for high-precision motion control applications. This motor is capable of providing an output power of 2.30 kW and is rated for a continuous stall torque of 6.55 Nm. With a maximum speed of 5000 RPM and a rated voltage of 480 V RMS, this motor is a reliable and dynamic solution for a variety of industrial automation tasks. Its IP50 rating ensures it is protected from dust ingress.

Quick Navigation

• Key Features
• Motor Specifications
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• High Precision: Servo motors are designed for high-precision motion control where a high degree of accuracy and speed are required.
• Low Inertia Design: The Kinetix Low Inertia series is designed for dynamic applications requiring rapid acceleration and deceleration.
• Continuous Stall Torque: Delivers a continuous stall torque of 6.55 Nm for precise motion control.
• High Speed: The motor can reach a maximum speed of 5000 RPM.
• Continuous Time Rating: The motor is rated for continuous operation, ensuring reliability in demanding applications.

Motor Specifications

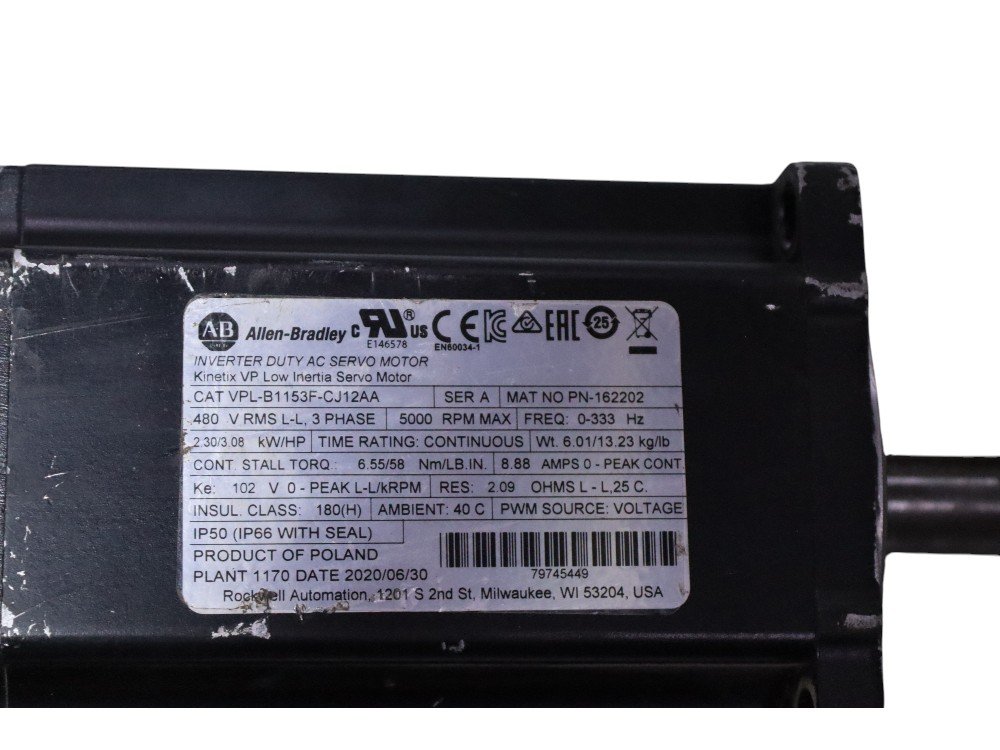

The Allen-Bradley VPL-B1153F-CJ12AA is a servo motor. The electrical ratings are as follows: a rated voltage of 480 V RMS (Line-to-Line, 3-phase), a peak continuous current of 8.88 Amps (0-Peak Continuous), and an output power of 2.30 kW. The winding resistance is 2.09 Ohms Line-to-Line at 25°C. The electrical constant is 102 V 0-Peak Line-to-Line per 1000 RPM, and the frequency range is 0-333 Hz. The motor’s insulation class is 180(H).

Technical Specifications

• Manufacturer: Allen-Bradley
• Part Number: VPL-B1153F-CJ12AA
• Material Number: 162202
• Product Type: Kinetix Low Inertia Servo Motor
• Rated Torque: 6.55 Nm
• Maximum RPM: 5000 RPM
• Rated Power: 2.30 kW
• Rated Voltage: 480 V RMS
• Rated Current: 8.88 A
• Phase: 3-phase
• IP Rating: IP50 (IP66 with seal)
• Weight: 6.01 kg

Applications

The Allen-Bradley VPL-B1153F-CJ12AA servo motor is an essential component for motion control in a wide variety of industrial settings, including:

• Robotics and Automation
• Packaging Machinery
• CNC Machines
• Factory Automation
