Allen-Bradley MPL-B330P-MJ74AA – 4.18 Nm Servo Motor

Description

Allen-Bradley MPL-B330P-MJ74AA – 4.18 Nm Servo Motor

The Allen-Bradley MPL-B330P-MJ74AA is a high-performance Kinetix Inverter Duty AC Servo Motor designed for high-precision motion control applications. This motor is capable of providing an output power of 1.8 kW and is rated for a continuous stall torque of 4.18 Nm. With a maximum speed of 5000 RPM and a rated voltage of 460 V RMS, this motor is a reliable and dynamic solution for a variety of industrial automation tasks. Its IP66 rating ensures it is dust-tight and protected against powerful water jets. The condition of this item is New-open box.

Quick Navigation

• Key Features
• Motor Specifications
• Technical Specifications
• Applications
• Why Choose ROMA Company?

Key Features

• High Precision: Servomotors are designed for high-precision motion control where a high degree of accuracy and speed are required.
• Inverter Duty AC Motor: Designed for use with a Variable Frequency Drive (VFD) for precise speed and torque control.
• Continuous Stall Torque: Delivers a continuous stall torque of 4.18 Nm for precise motion control.
• High Environmental Protection: The IP66 rating protects the motor from dust ingress and powerful water jets.
• Continuous Time Rating: The motor is rated for continuous operation, ensuring reliability in demanding applications.

Motor Specifications

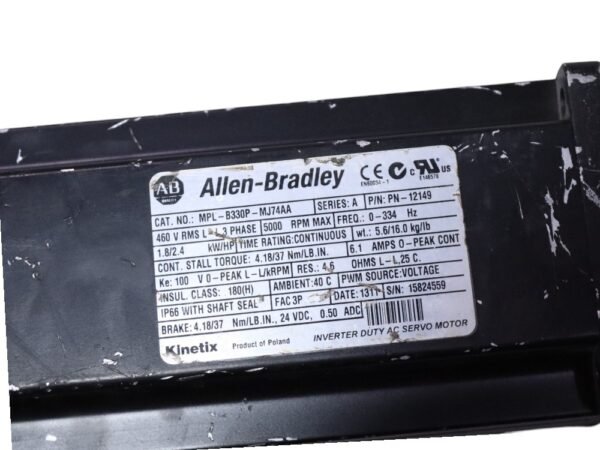

The Allen-Bradley MPL-B330P-MJ74AA is a servo motor. The electrical ratings are as follows: a rated voltage of 460 V RMS (Line-to-Line, 3-phase) and a continuous peak current of 6.1 Amps (0-Peak Continuous). The output power is 1.8 kW. The motor’s winding resistance is 4.6 Ohms Line-to-Line at 25 °C. The electrical constant is 100 V 0-Peak Line-to-Line per 1000 RPM, and the frequency range is 0-334 Hz. The motor’s insulation class is 180(H). The motor has a brake with a torque of 4.18 Nm, which requires 24 VDC and 0.50 ADC.

Technical Specifications

• Manufacturer: Allen-Bradley
• Catalog Number: MPL-B330P-MJ74AA
• Part Number: 12149
• Product Type: Kinetix Inverter Duty AC Servo Motor
• Continuous Stall Torque: 4.18 Nm
• Maximum RPM: 5000 RPM
• Rated Power: 1.8 kW
• Rated Voltage: 460 V RMS
• Rated Current: 6.1 A
• Phase: 3-phase
• IP Rating: IP66

Applications

The Allen-Bradley MPL-B330P-MJ74AA servo motor is an essential component for motion control in a wide variety of industrial settings, including:

• Robotics and Automation
• CNC Machines
• Packaging Machinery
• Factory Automation
